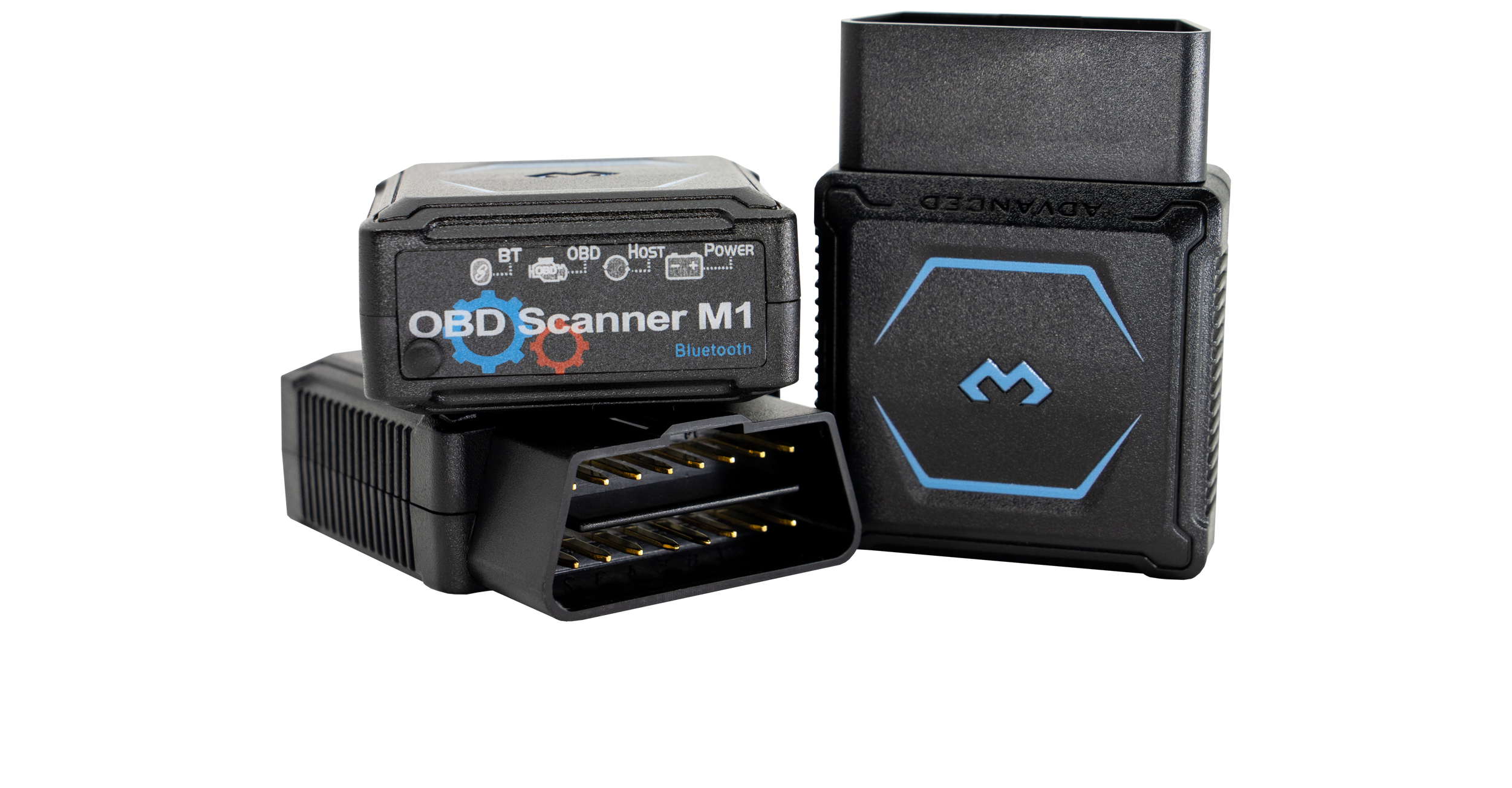

OBD Scanner M1
Turn DMD² into the complete dashboard that it can be! Monitor your vehicle's available sensors in real-time and detect issues just by looking at the values. View ECU errors and reset them.
Connected Magic
Bluetooth
Communication over Bluetooth, pair it, set it up in DMD² and get all the data you want while you navigate!
Waterproof
The OBD Scanner M1 chassis is sealed and waterproof, ideal for off-road and aventure use cases.
Auto Sleep
When the vehicle is turned off, the dongle will enter sleep mode after some minutes to prevent battery discharge.
Lots of Data

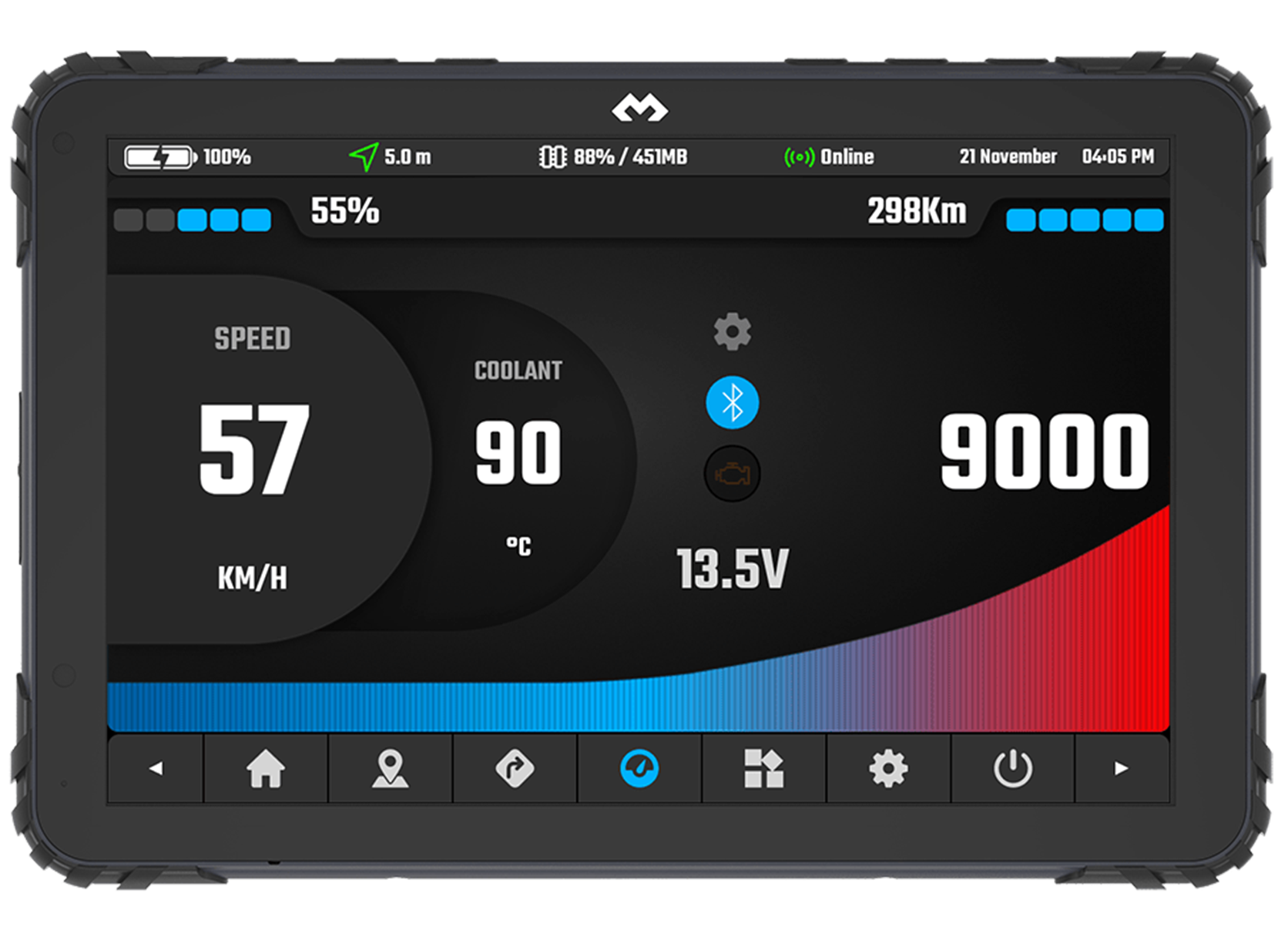

Display sensors like speed, RPM, cooling temperature, voltage, throttle position, spark advance and more.
How to Setup
Install It
Locate the diagnostics port in your vehicle and either plug the dongle directly or use a convertion cable to connect it.
Pair It
Go to the Bluetooth menu in your device and pair the Scanner M1, if you cant find it press and hold the reset button on the dongle for 3 seconds.
Setup Up
Start DMD², go to the OBD View and tap the cog wheel in the center, tap "Select OBD Bluetooth Dongle" to choose the M1 dongle.
Data Everywhere
You can view the OBD data not only in the OBD View but also everywhere in the app using the available slots.
Compatibility & Sleep
Our dongle will work with almost every car, 4x4 or Overlander. DMD² will read OBD2 standard data which been available since 1996.
For motorcycles, OBD2 standard is available since 2011 (Euro5 up), although there are cases where even older motorcycles will also work.
Please notice that most motorcycles require a diagnostics port to OBD converter cable (which we also sell).
Sleep mode details:
Conditions for sleep mode:
1> There is no communication between the mobile phone and dongle for 15 consecutive minutes.
2> The motorcycle OBD bus has no active data communication for 15 consecutive minutes.
Wake-up Conditions After Sleep:
1> The paired phone initiates the connection.
2> Motorcycle OBD bus has communication data.
3> The voltage of the motorcycle battery drops by more than 2V instantaneously.
Specifications
HS-CAN and MS-CAN + All OBD2 protocols
SAE J1850-PWM / VPW
ISO 9141-2
ISO 14239 (slow / fast)
ISO 15765 (CAN)
SAE J1939 (CAN)
ISO 11898 (raw CAN)
Single Wire CAN (GMLAN)
BR/EDR
MFI
Mechanical & Environmental Reliability Testing Standards:
EN 50665:2017 / EN IEC 62368-1:2020+A11:2020, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, ETSI EN 301 489-1 V2.2.3 / ETSI EN 301 489-17 V3.2.4, ETSI EN 300 328 V2.2.2
Certification:
- CE RED Directive
- RoHS Directive 2011/65/EU
Where to Buy
You can buy any of our products directly from us, check our EU online shop - Thork Racing, or you can buy from any of the dozes of resellers that we have worldwide.
If you are outside EU we specifically advise to purchase only from our resellers!
