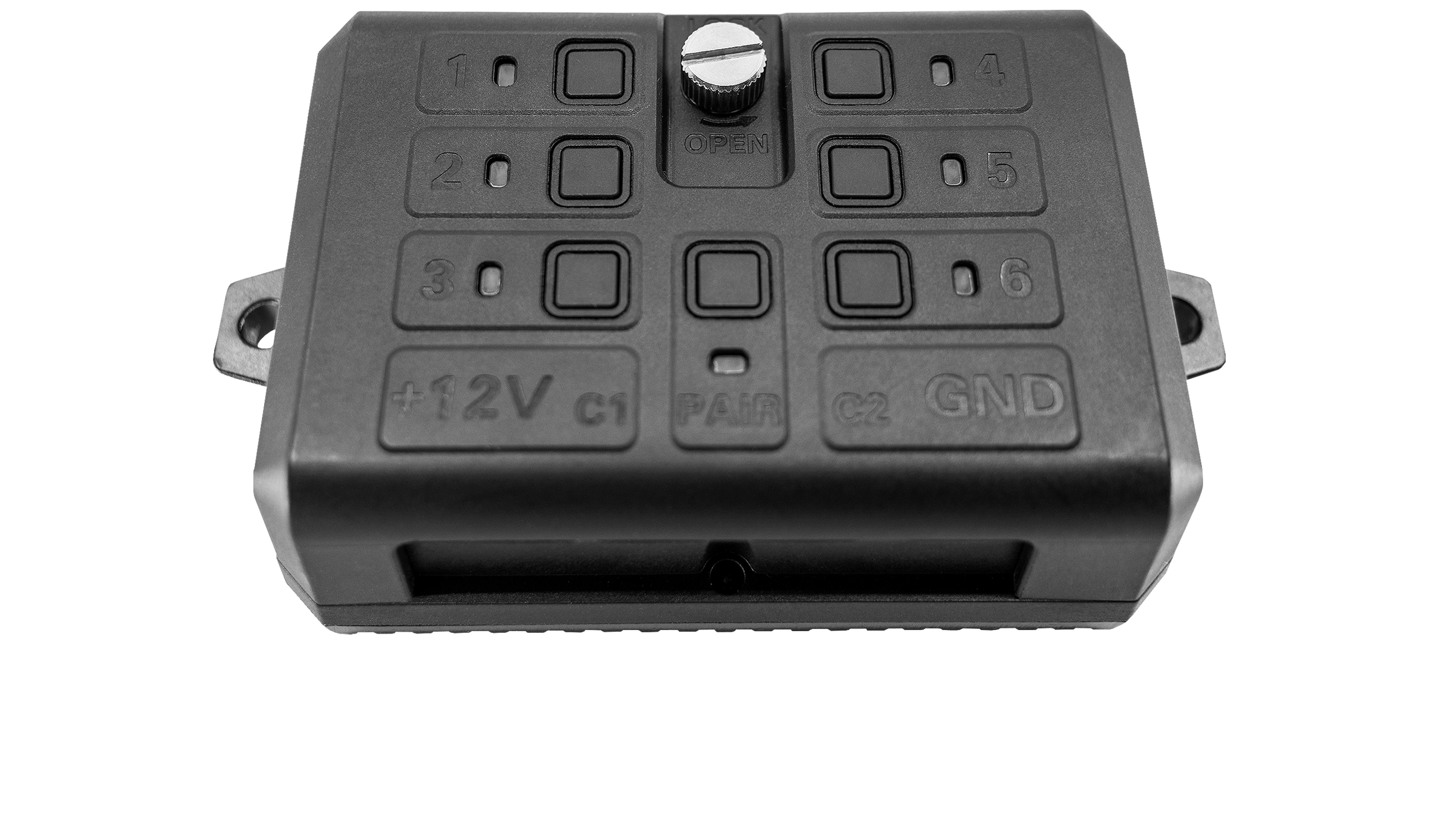

Power Box
A power distribution box that allows you to remotely control up to 6 accessories from within DMD²
Ideal to manage accessories connected to your motorcycle, 4×4 or Overlander - heated gear, navigation accessories, auxiliary lights, horns, air compressors and much more.
Easy - Powerful - Pratical
Bluetooth
Remote control over Bluetooth. Pair it with your navigation device and manage everything from within DMD².
Versatility
Supports from 9V to 28V and each channel can handle up to 80A! Making it capable of handling any setup.
6 Channels
Control up to 6 devices like auxiliary lights, compressors, ambient light, heated gear and any other accessory.
C1 / C2 Input
Use the C1 input for idle control (connect post ignition) and C2 input for creating rules or switching profiles.
How to Setup
Connect to Battery
Connect 12V+ Input and GND directly to your vehicle battery. The box will distribute the same voltage as the input, 12V or 24V, on all 6 channels. Each channel can handle up to 80A.
Feed C1
C1 input controls the power box idle, connect it to post-ignition power, when C1 receives power the box will turn on and resume states, when C1 stops receiving power, the box will idle and turn off all channels.
Pair It
Make sure C1 is getting power so that the device does not go into idle mode. Press and hold the "PAIR" button for 5 seconds, search for DMD-PowerBox in your device bluetooth menu, tap on it to pair it!
Start Using It
Start the DMD² app and load the "PowerBox" widget in one of the home panels or go to Global Settings > Power Box Settings, setup everything and you are ready to go. Time to connect some accessories!

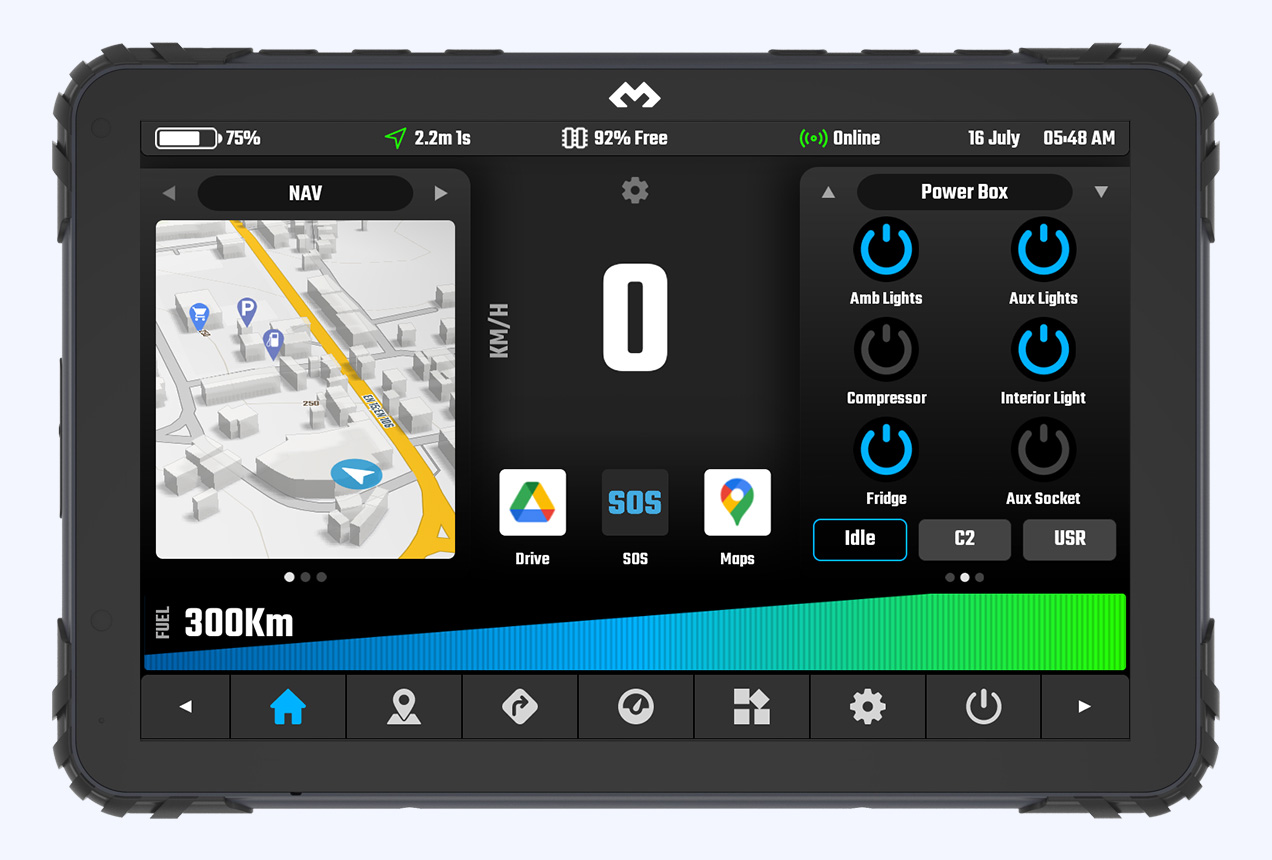

Integrated into your navigation
The Power Box perfectly integrates with DMD² for an easy control while navigating your adventures.
Includes two user profiles with quick toggle, idle mode toggle (to keep it on even if C1 has no power) and allows rule creation with the C2 input.

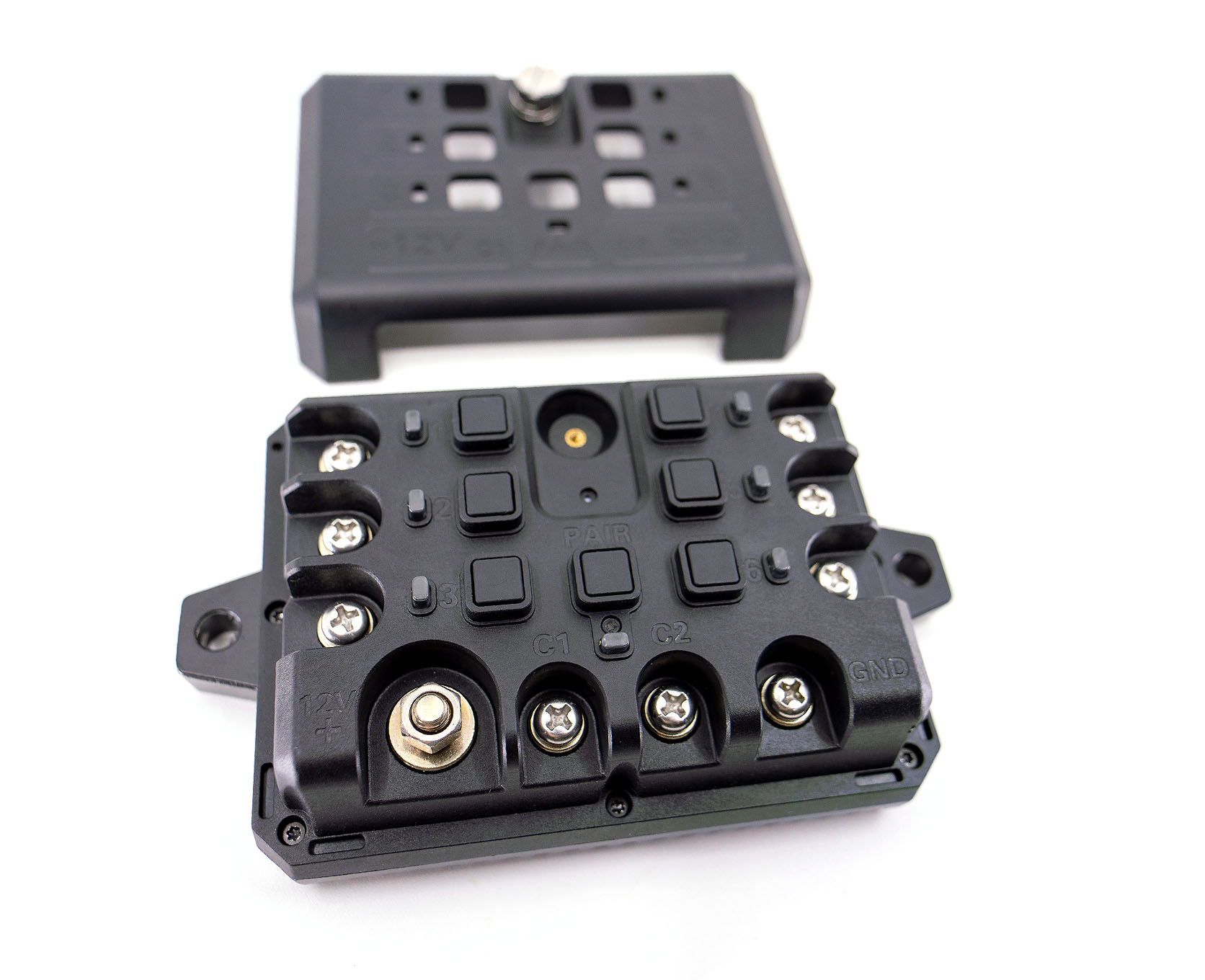

Maximum Quality
We have selected only the best and highest quality components for our Power Box. Each channel includes ESD protection, EMC optimization, independent logic ground, very low leakage current, cranking pulse compatibility and built in protection and diagnostics functions.
Certification:
- CE Certification
- WEEE Directive 2012/19/EU
- REACH compliant
- RoHS Directive 2011/65/EU
