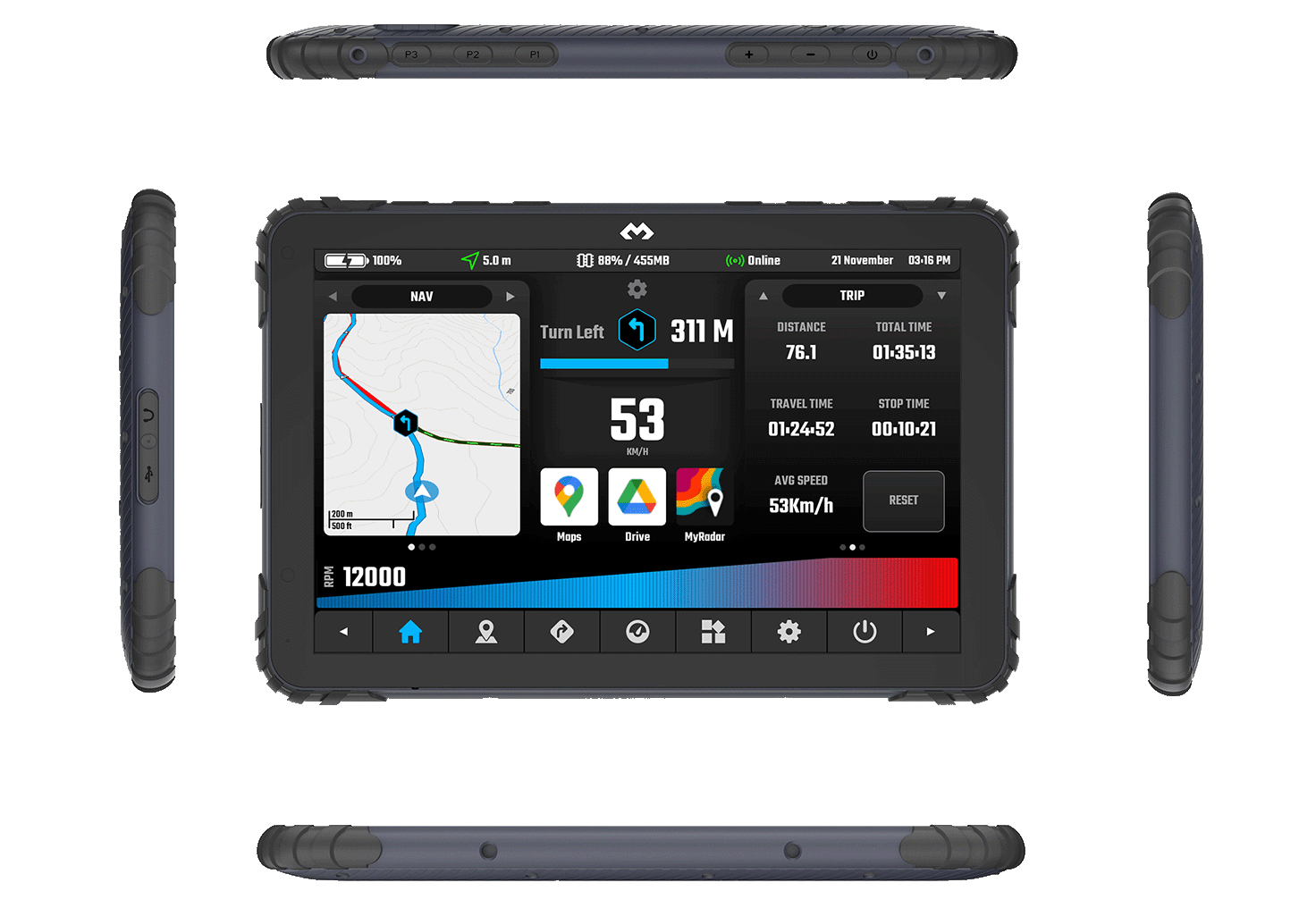

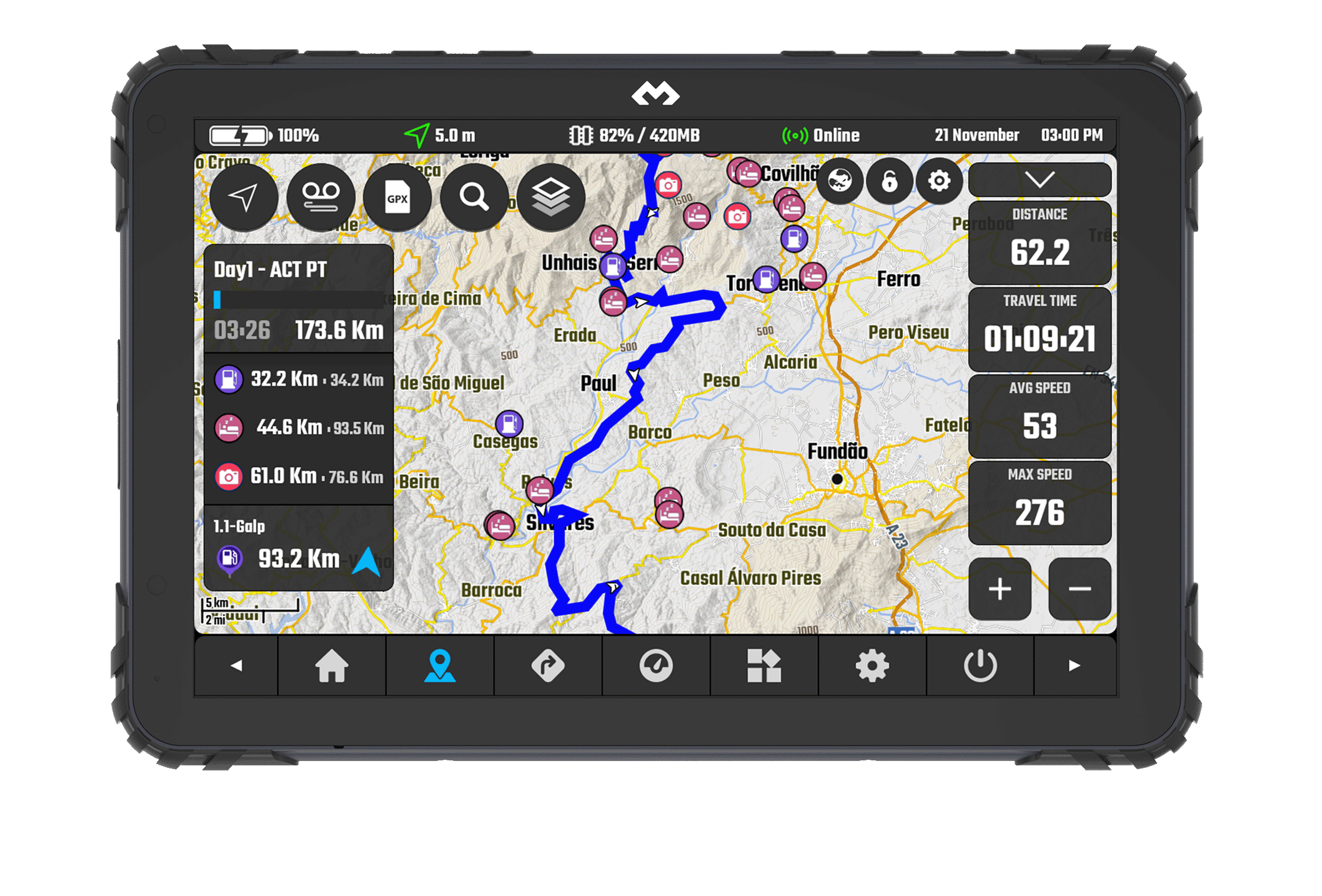

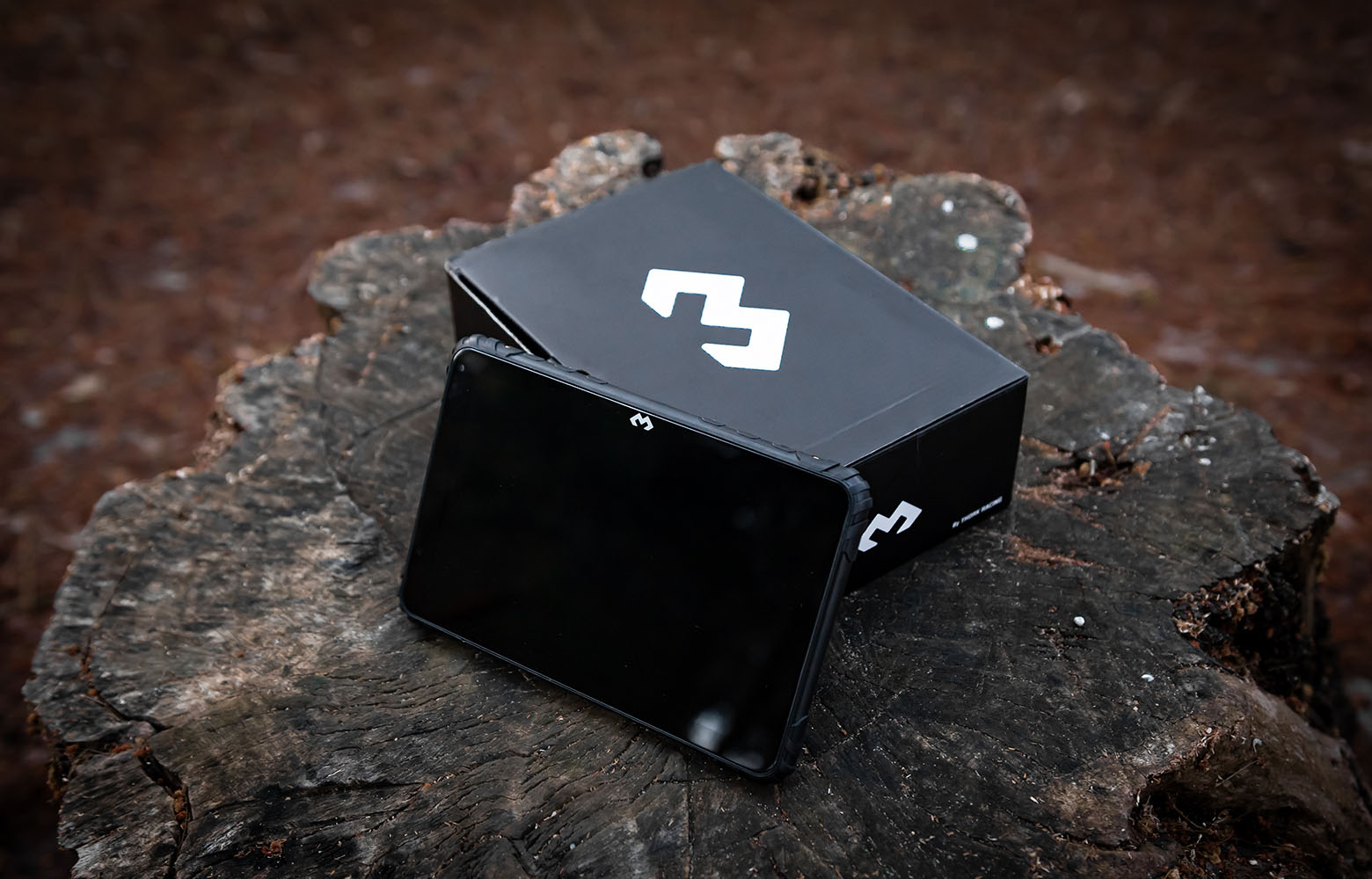

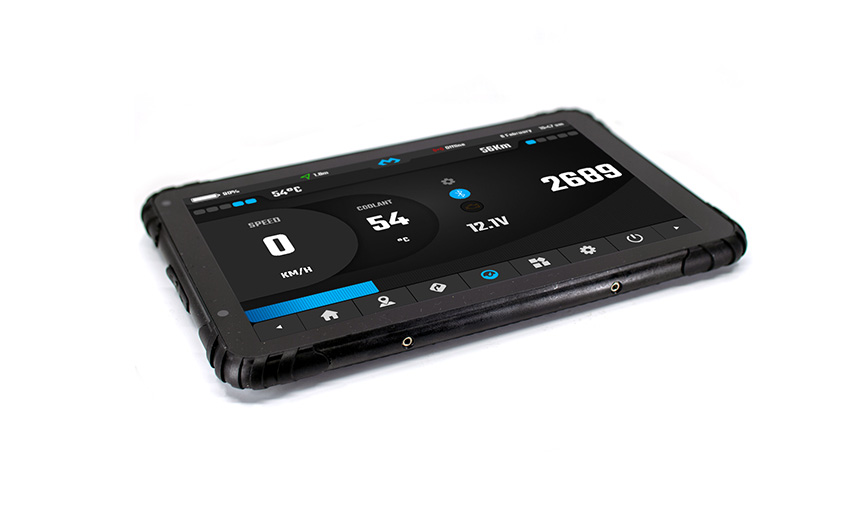

8" Navigation Tablet

DMD T865X

Android 14, waterproof (IP67) high precision GPS device
High Brightness LCD with 1300 nit
Internally 12V, no external power supply
Power and Remote Controller by cable or holder pins

Navigation with the advantages of the Android eco-system.

Everything you would ever want from an adventure focused navigation device, but with a full Android OS where you can install any app. With our DMD² app pre-installed, fully licensed and backed by our support.

The benefits of a purpose built device

Long Battery Life 8h @ Full Power

Robust Charging M9 Screw Type

High Brightness 1300 Nits

Working temperature -20°C to 60°C

Full OS Android 14

High Precision GPS Chip

Octa-Core CPU 128GB Storage

Connectivity 2x SIM Card

Highlights

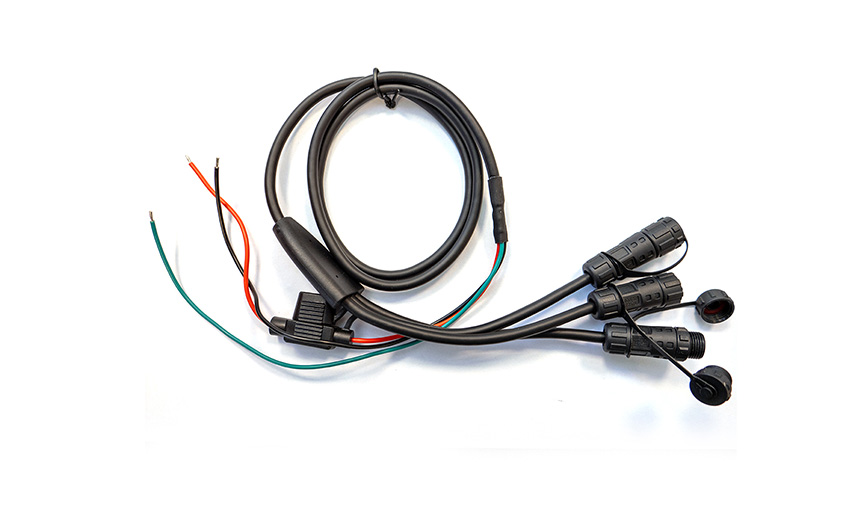

The DMD-T865X harness includes 3 connectors that allows you to connect to the holder or device back M9 connector. Both connections can deliver power and remote controller data! You can choose to use only the screw type M9 connector or you can use only the holder pins or even both at same time! Everything will stay powered and connected.

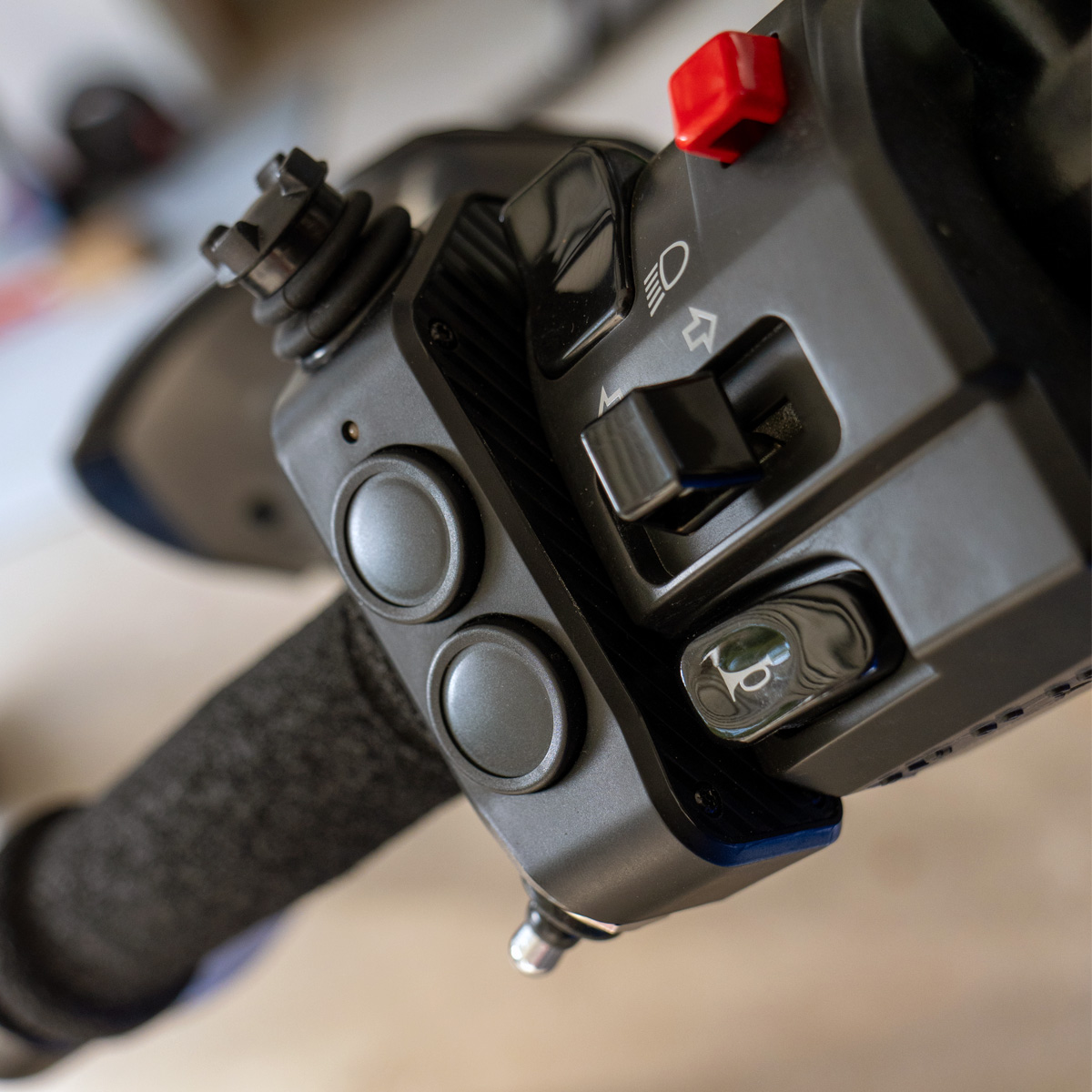

Remote Controllers

Supports our wired remotes, a single cable, plug and play connection, no need for bluetooth.

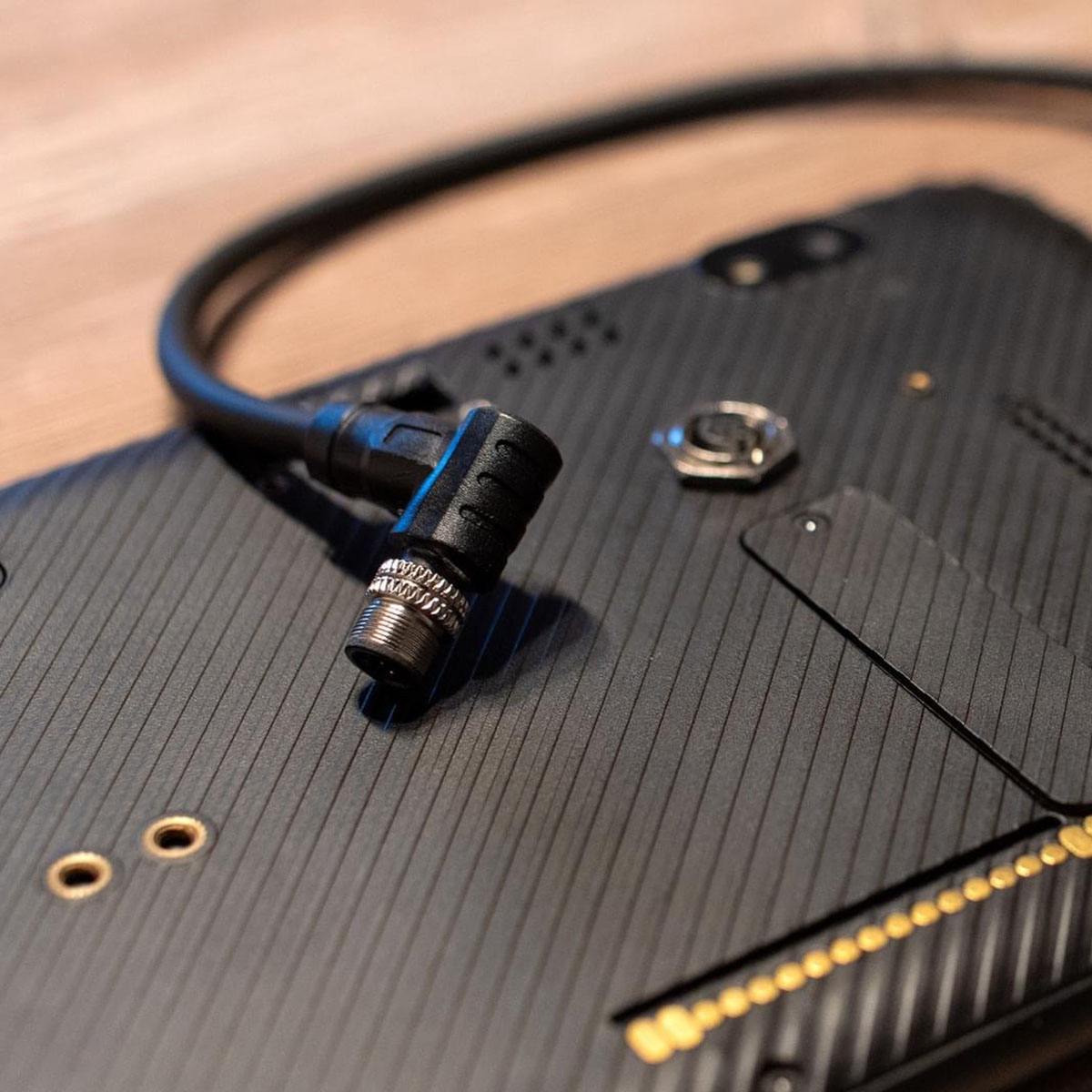

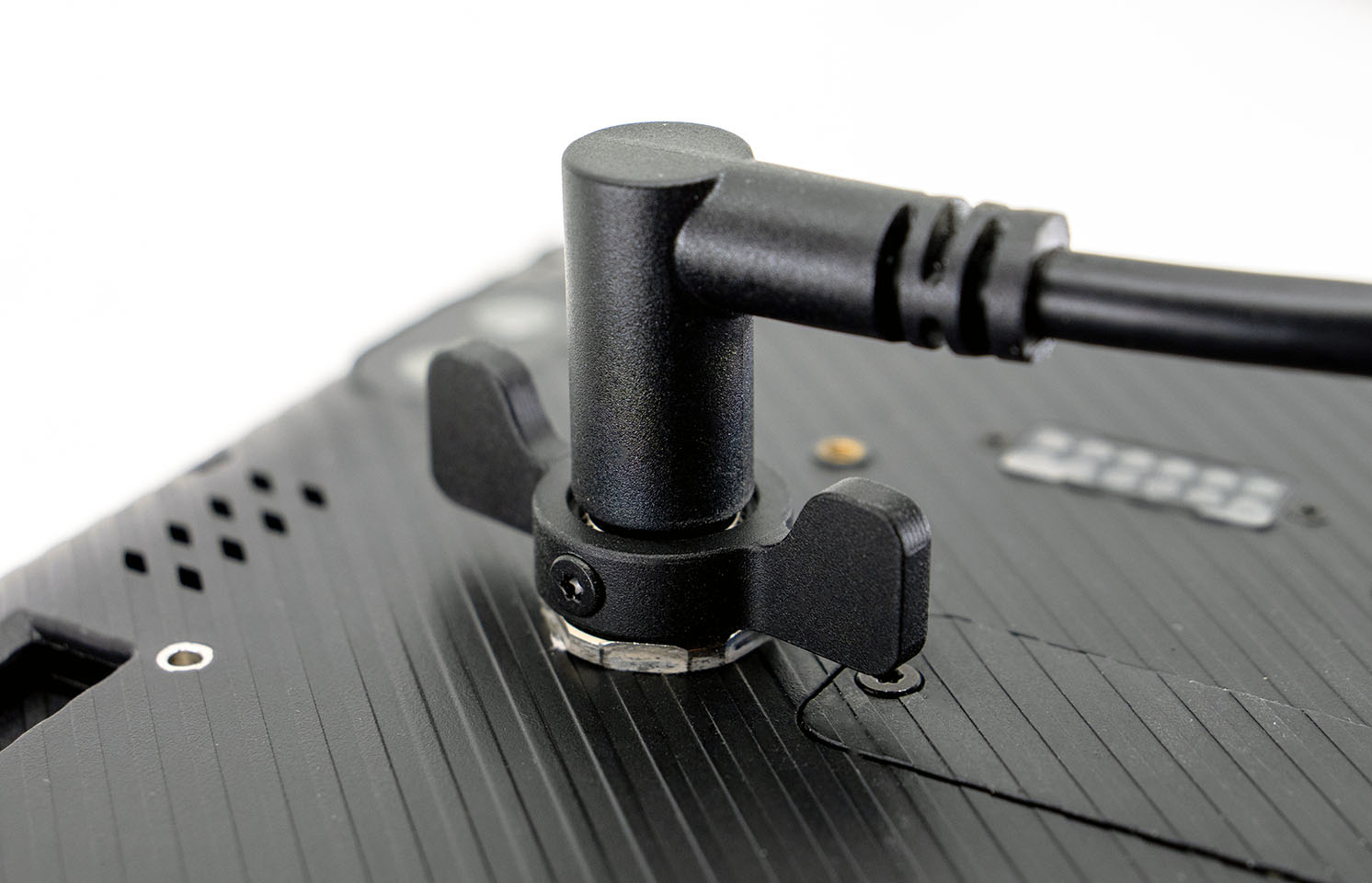

M9 Screw Type

Ideal for off-road use, this connector will not fail you and it will connect power and the remote controller.

Extreme Heat Ready

Tested in hot weather, battery will idle if required and device will use direct power without ever discharging.

Sustained Brightness

Independently of temperatures and power consumptions, the LCD will sustain maximum peak brightness.

3 Holder Options

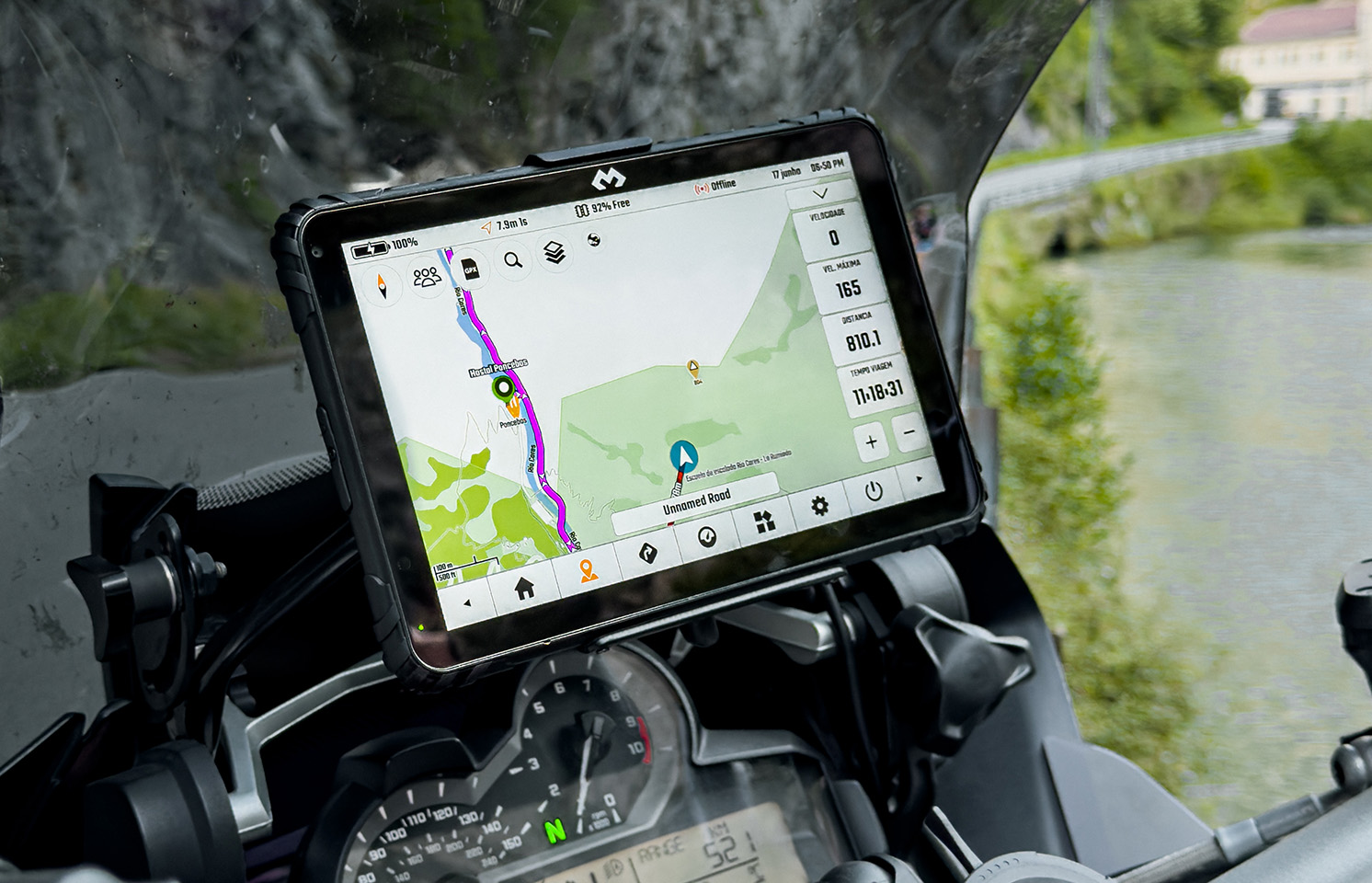

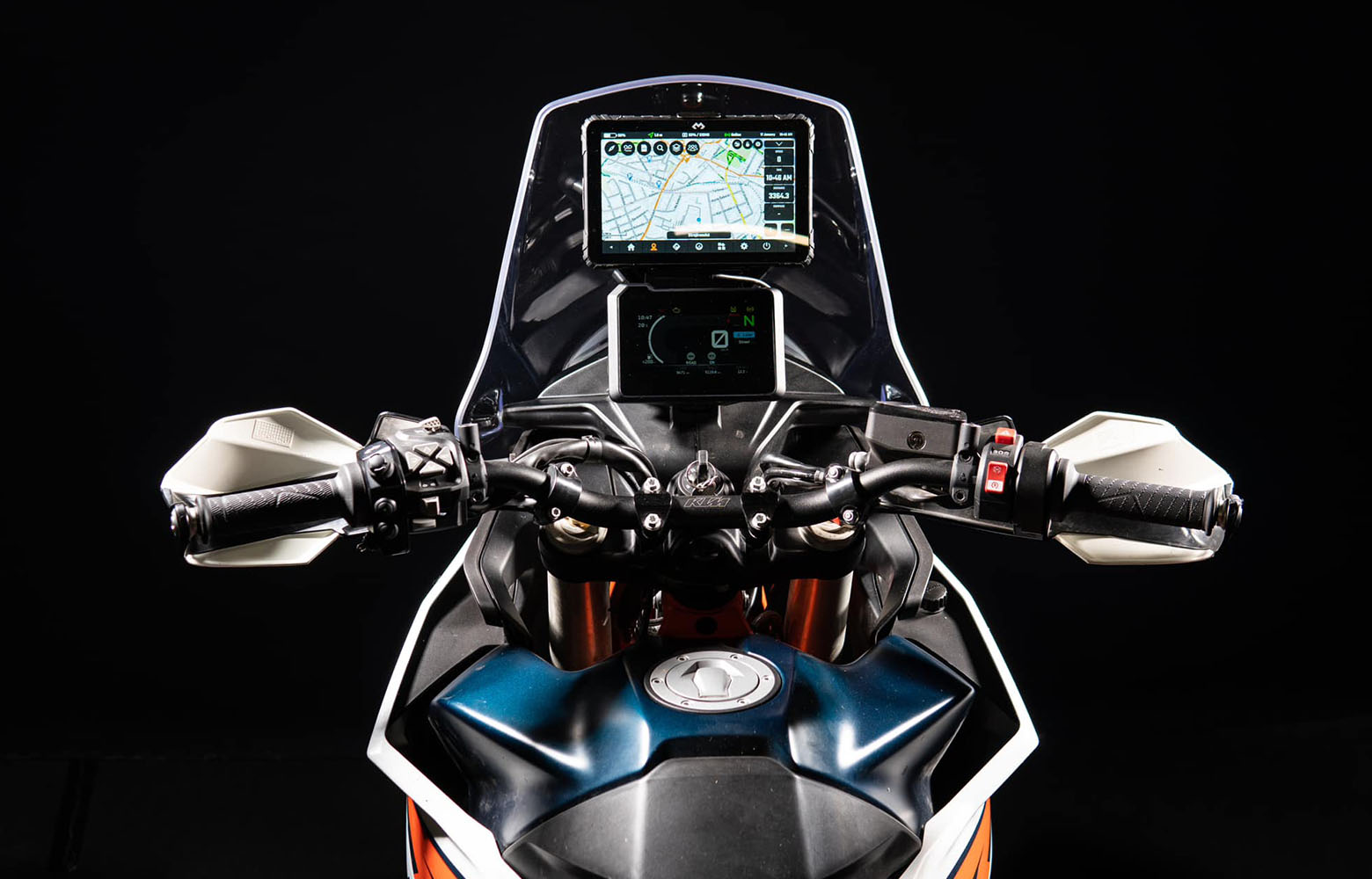

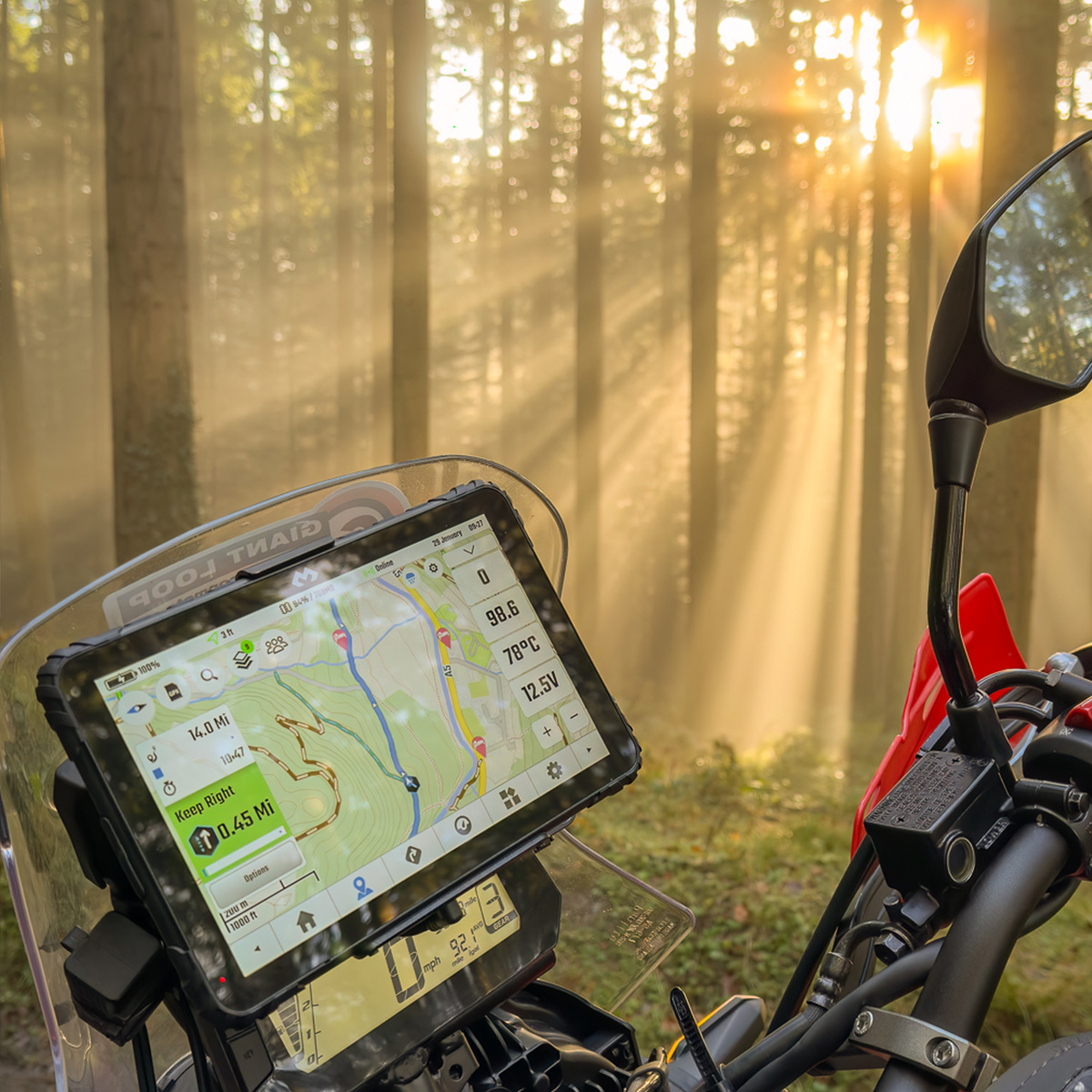

Road & Light Adventure

For road and light adventure motorcycles there is our near invisible holder, a light and sleak solution with pins.
With AMPS pattern holes for an easy install, includes both rear and side locks.

Charging & Remote Controller with holder pins.

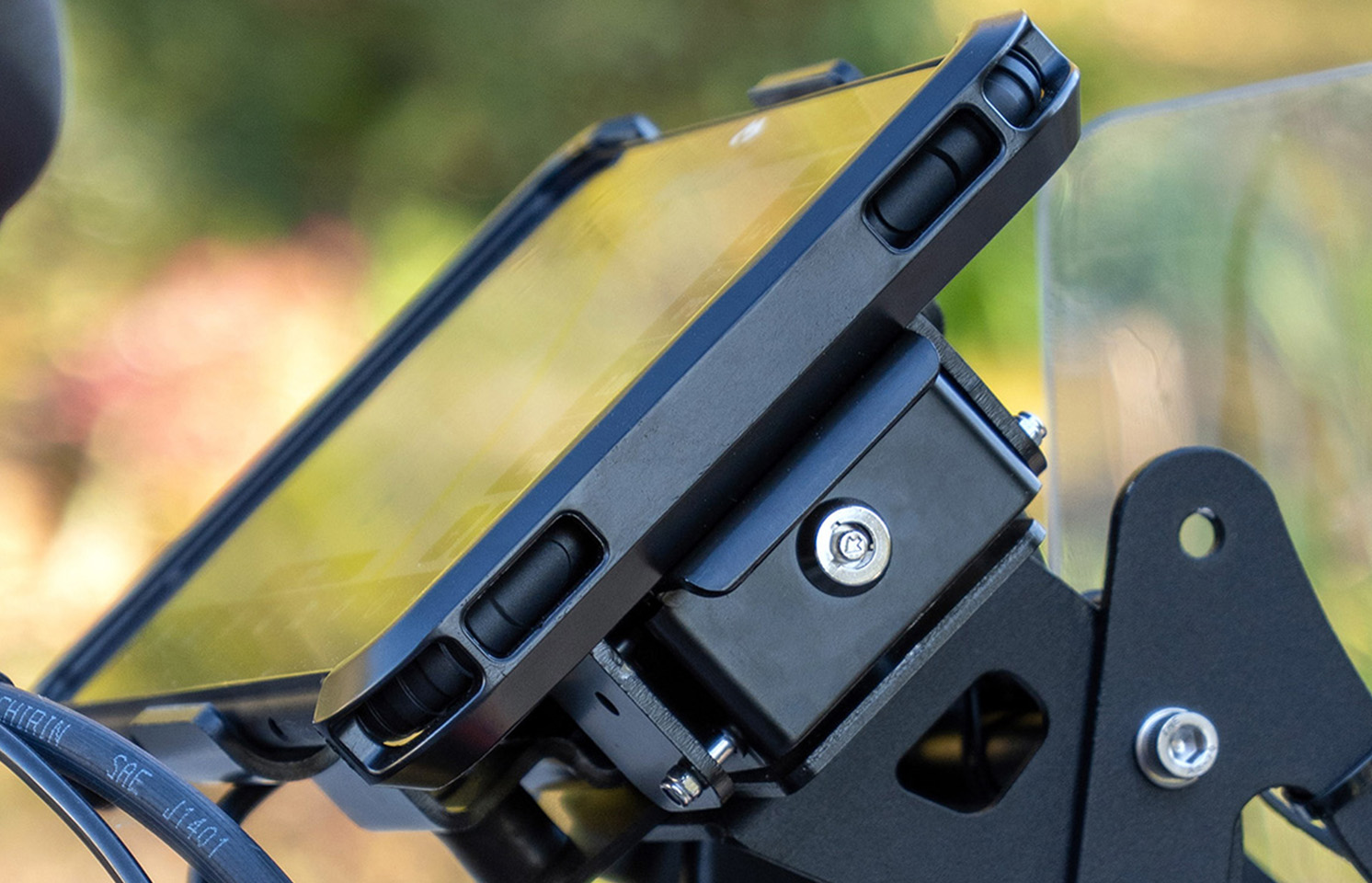

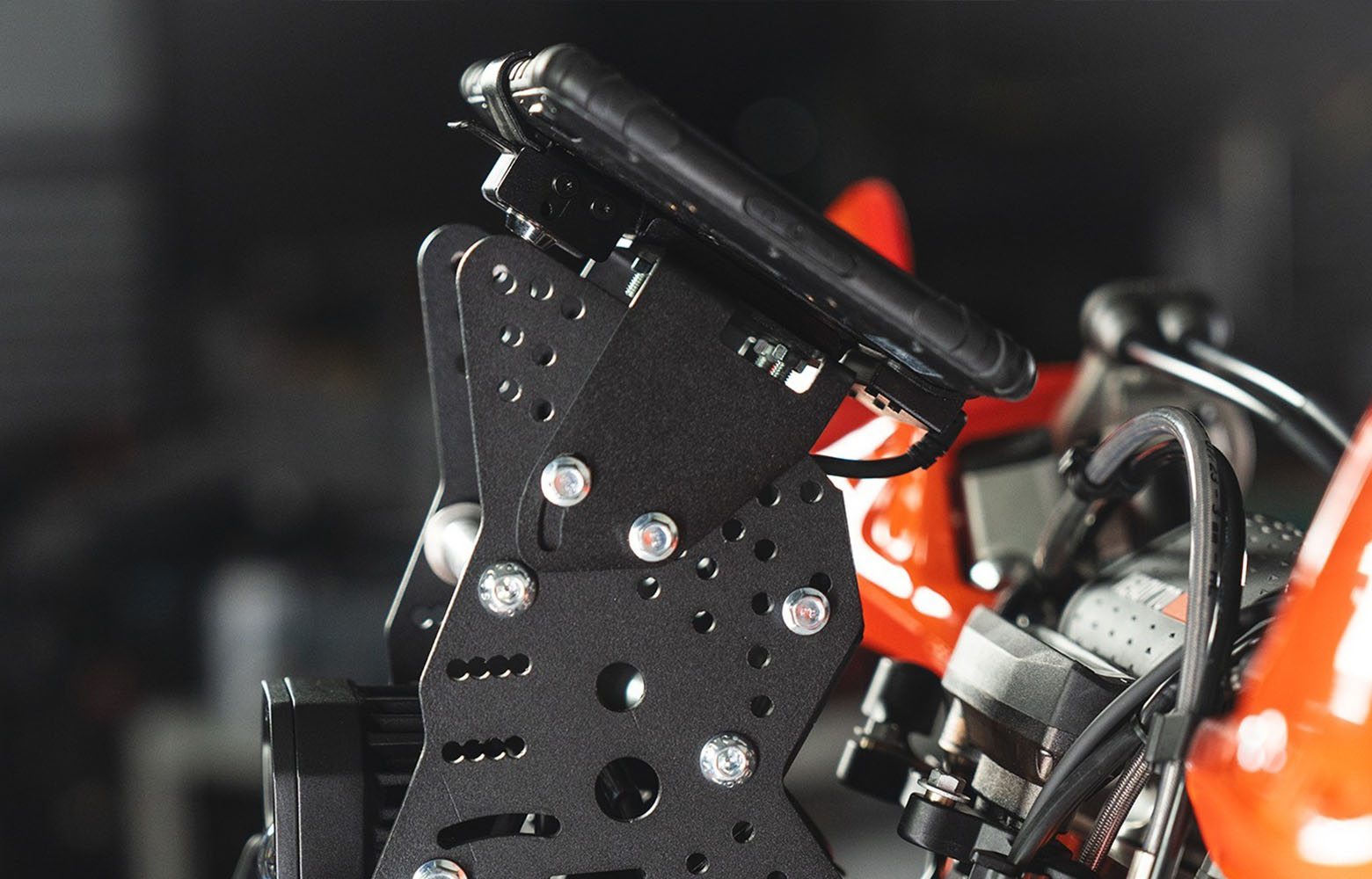

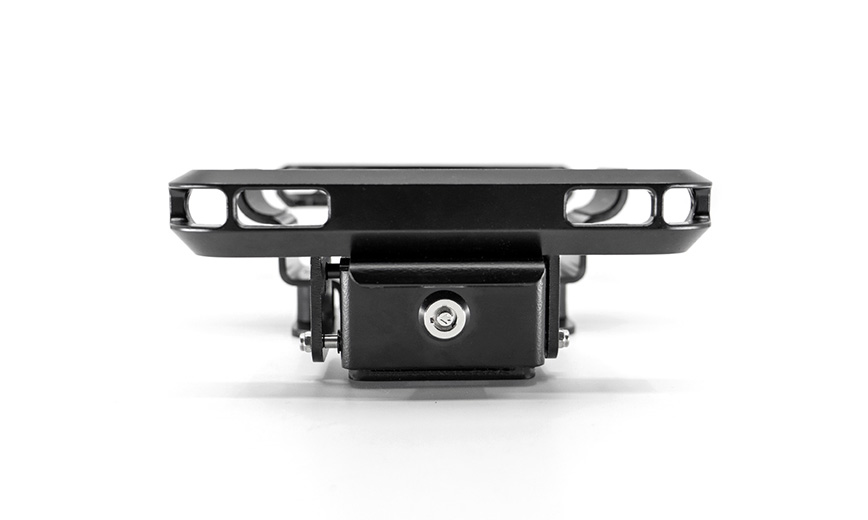

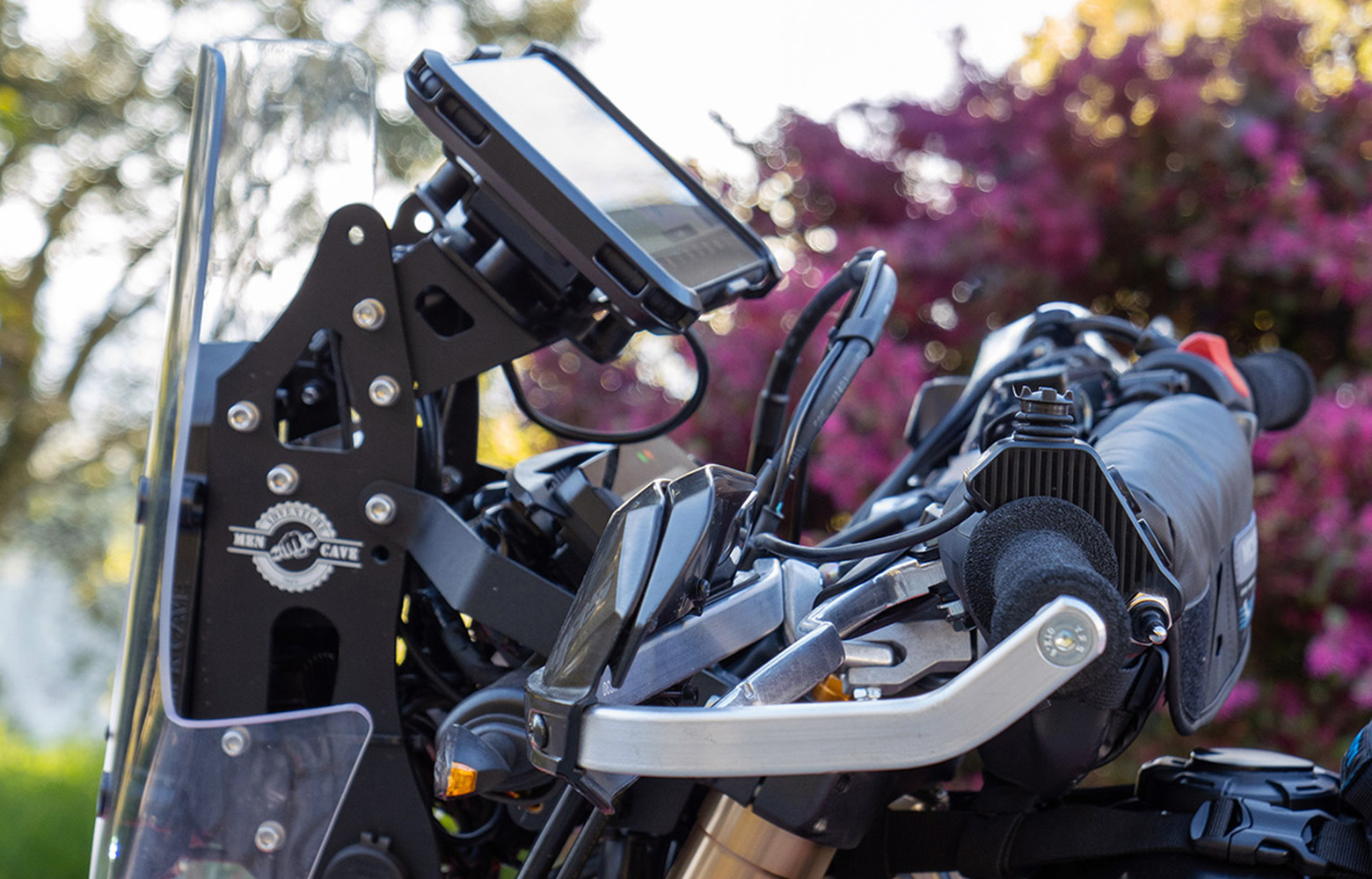

Motorcycle Off-Road

For off-road motorcycles, our heavy-duty, extremely resistent holder, offers extra protection around the device chassis.
With AMPS pattern holes for an easy install, includes anti-vibration blocks and key lock.

Charging & Remote Controller with rear M9 connector.

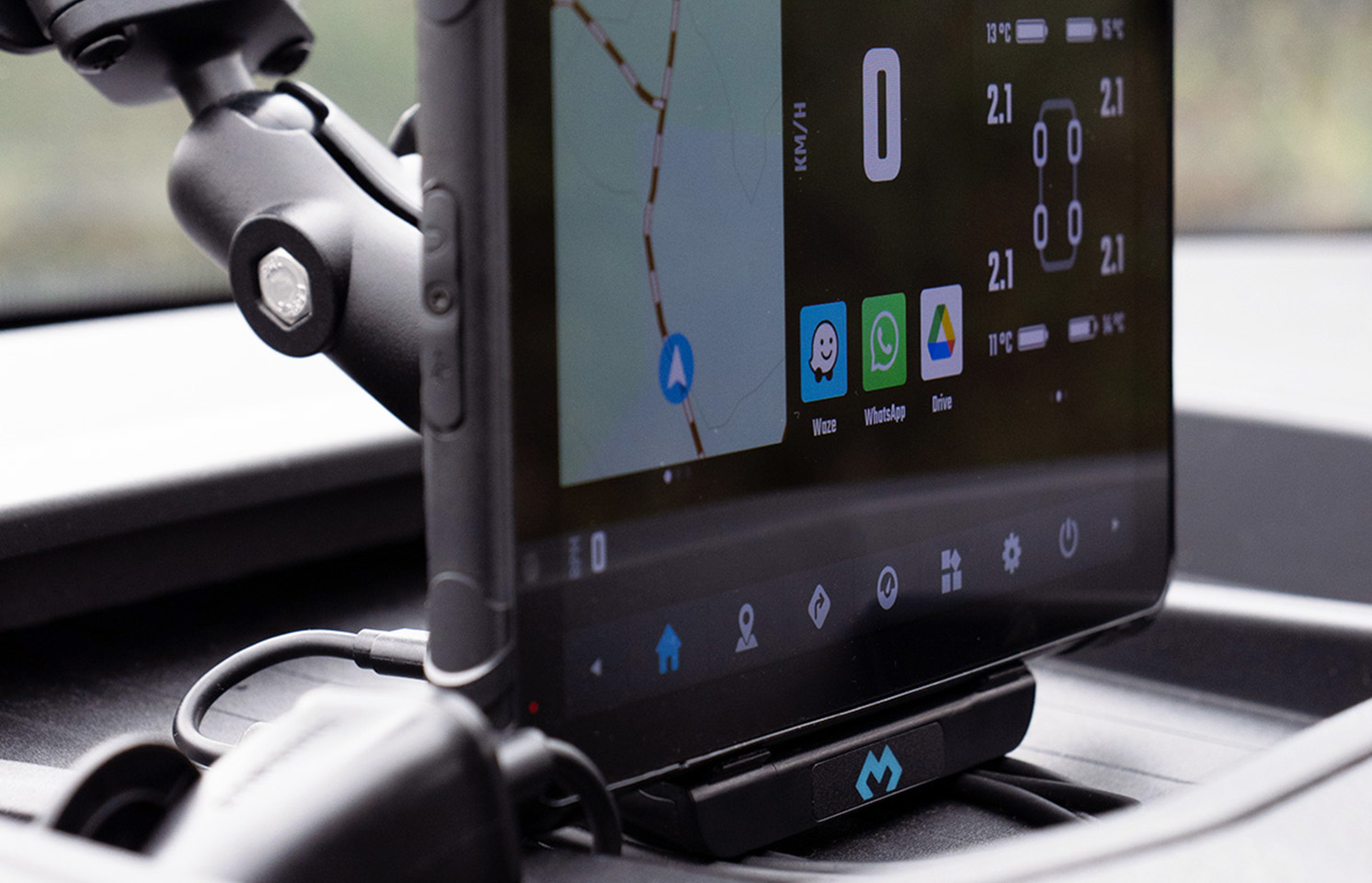

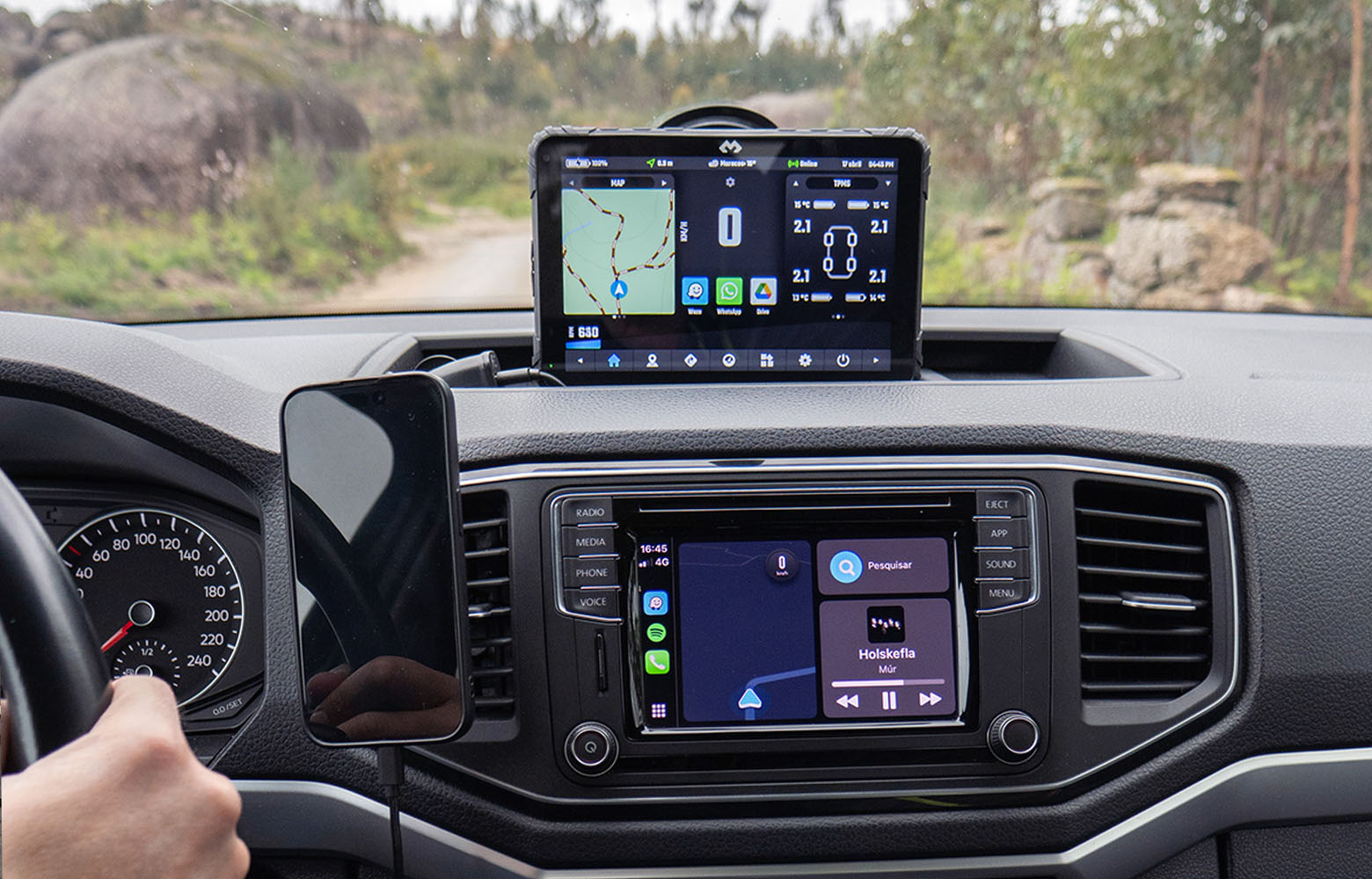

4x4 & Overlander Holder

For cabin vehicles like 4x4 and overlanders. Includes USB connectors and USB charing port.
With AMPS pattern holes for an easy install, includes rear lock.

Charging by holder pins & Remote Controller by BT only.

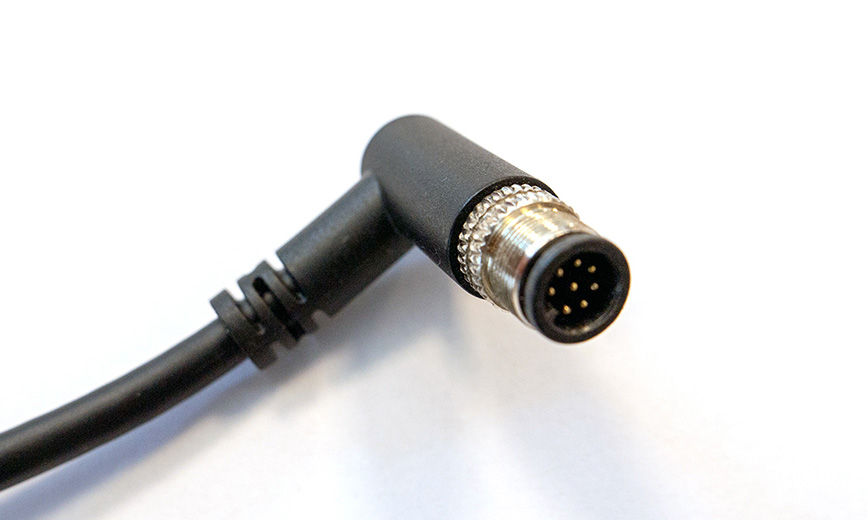

M8 Screw Type

Reliable Connection

Although the T865X includes pins for the adventure and car holders, for serious off-roading you will also have the screw type connection. This is the only reliable, fail-proof, power delivery and data connection for motorcycle off-road use!

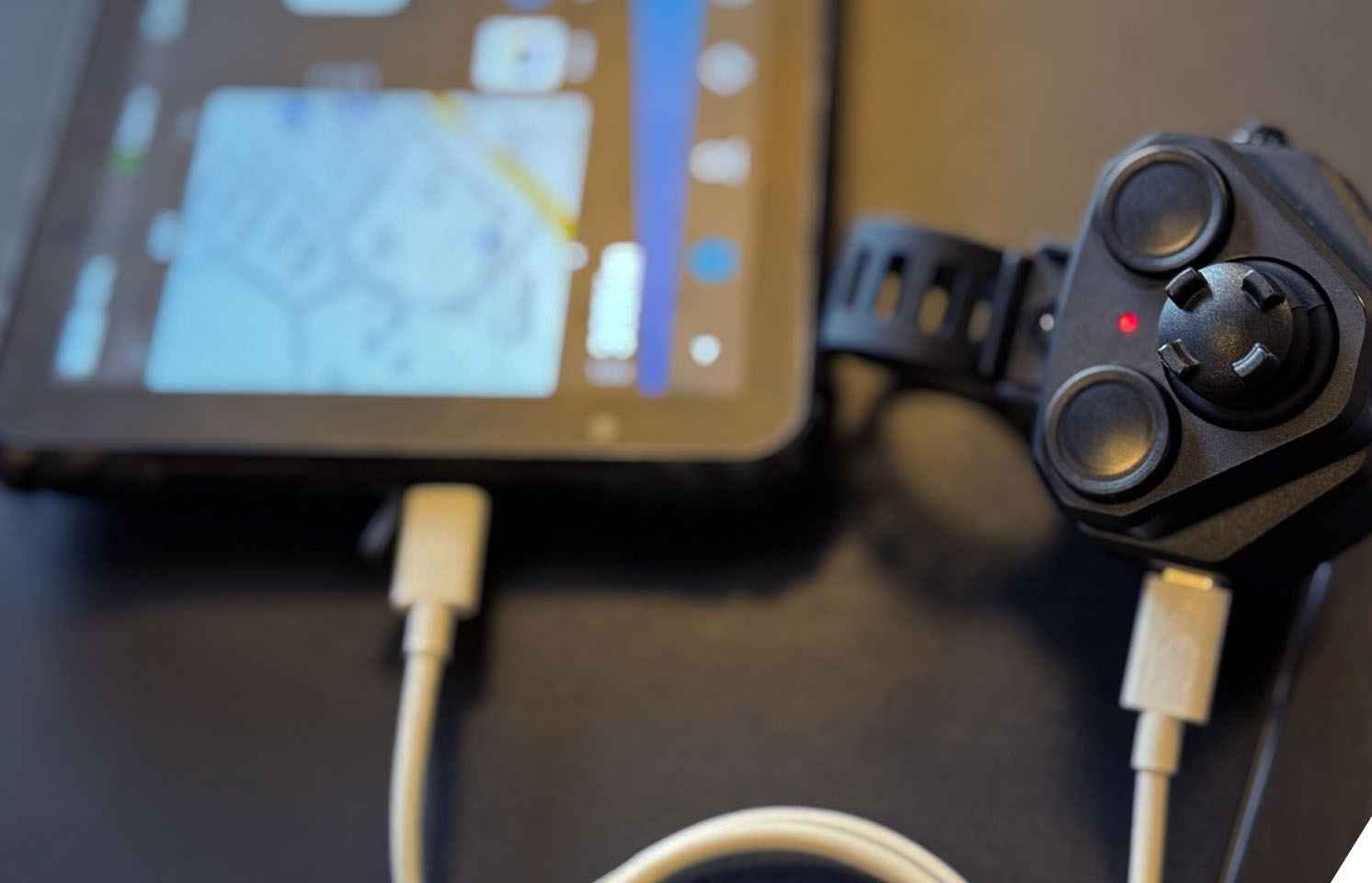

Charge Other Devices

8000mAh

With the huge 8000mAh battery, that will be full when you stop riding, you can use the T865X USB port to charge other devices and accessories during long stops. Charge your phone, action camera, and more, it is like having a power bank.

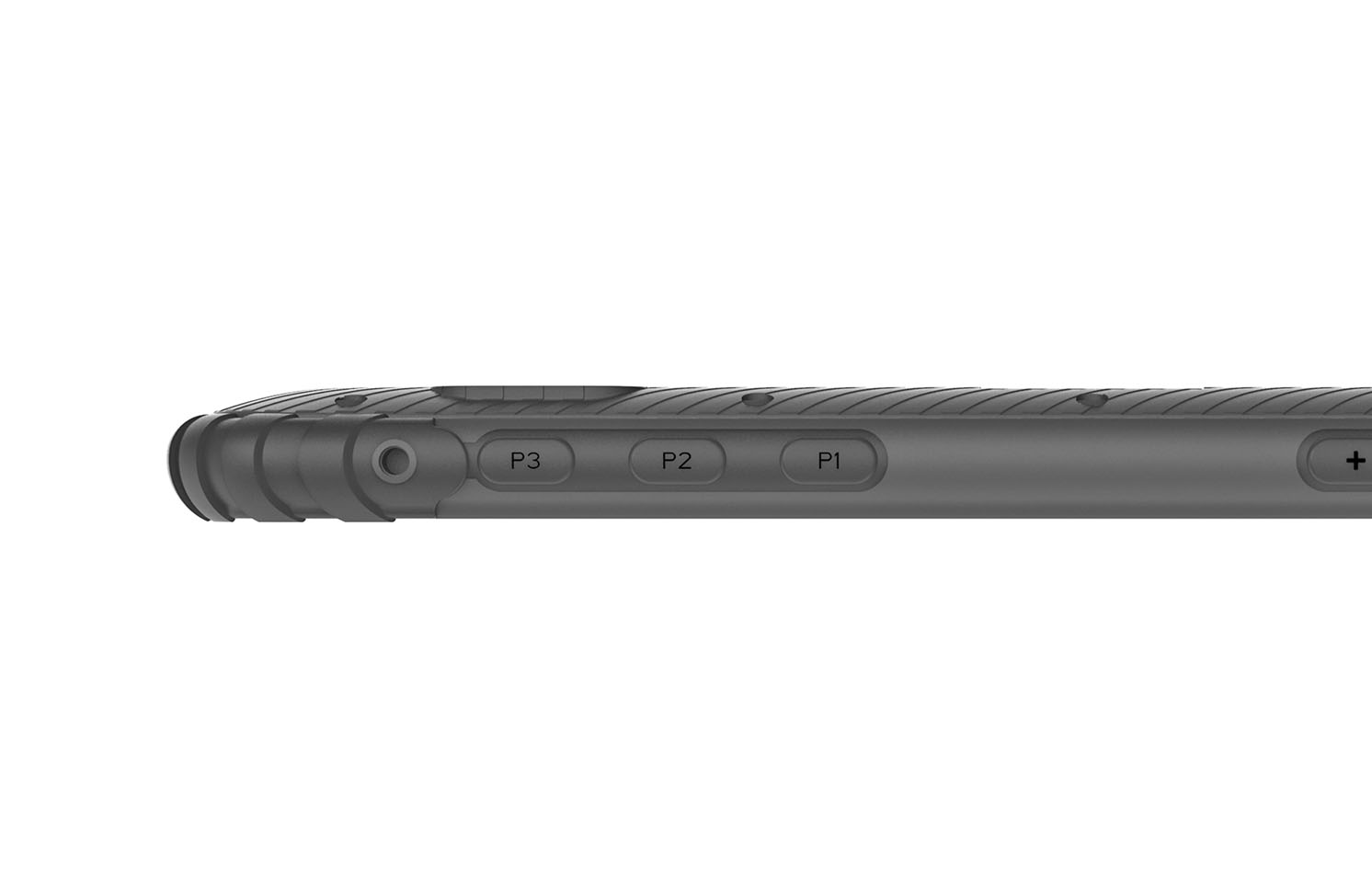

3 User Buttons

User Configurable

Setup the 3 top buttons (P1, P2, P3) for quick actions like launching and app, switching between apps, send SOS request, save locations, start and pause the GPX recorder, disable screen touch and much, much more!

Drive Safe

SOS System

Our devices include our SOS and Alarm system that will send an SMS in case a fall is detected. It can send your location to two contacts and if you are using DMD² Group Ride with location shared, it will alert your group.

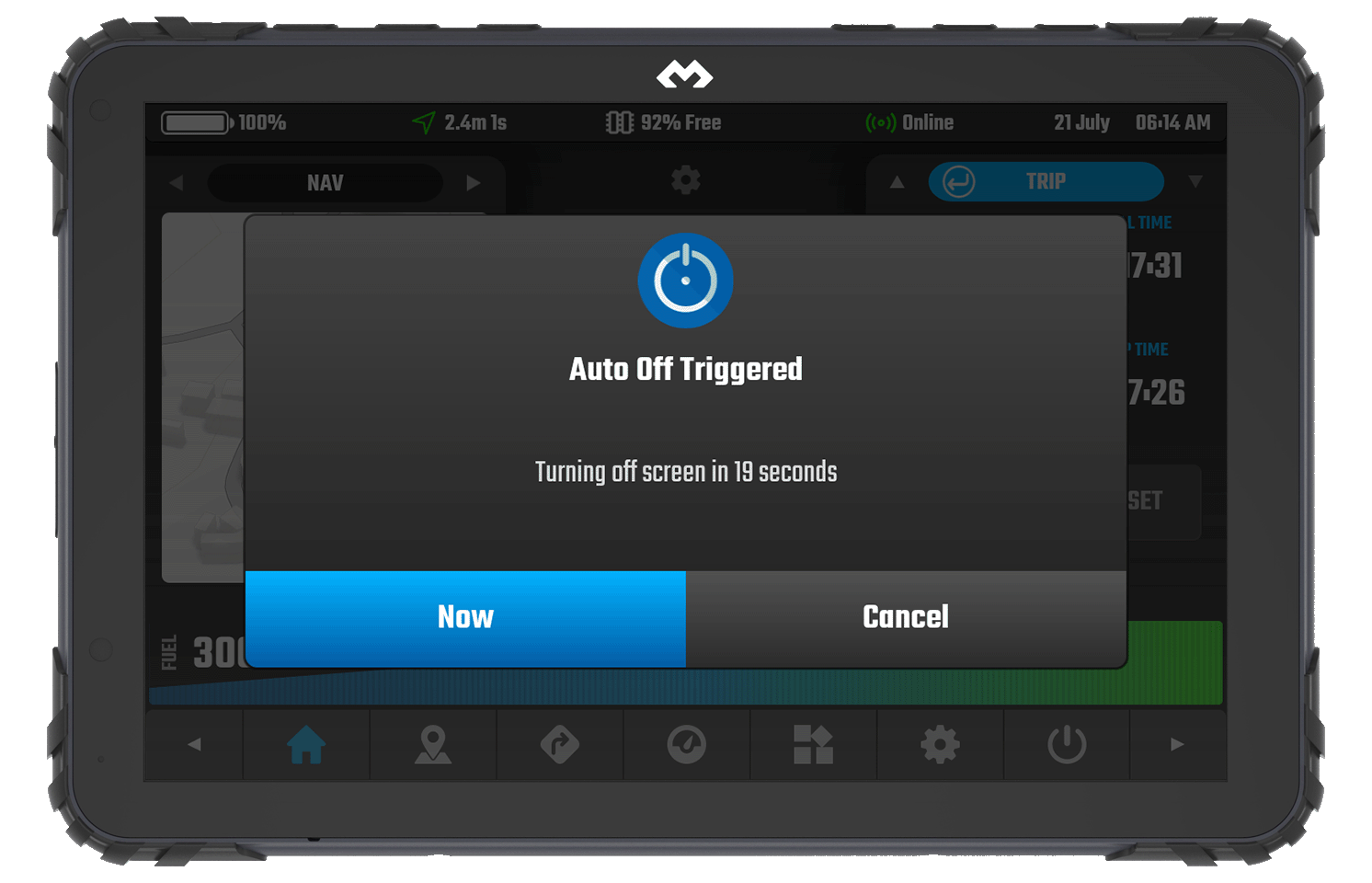

Ignition Detection

Auto On / Off

Our devices will automatically turn on when they receive power, we also include many settings in our Auto-Off app where you manage the automatic shutdown or screen turn-off.

For Overlanding

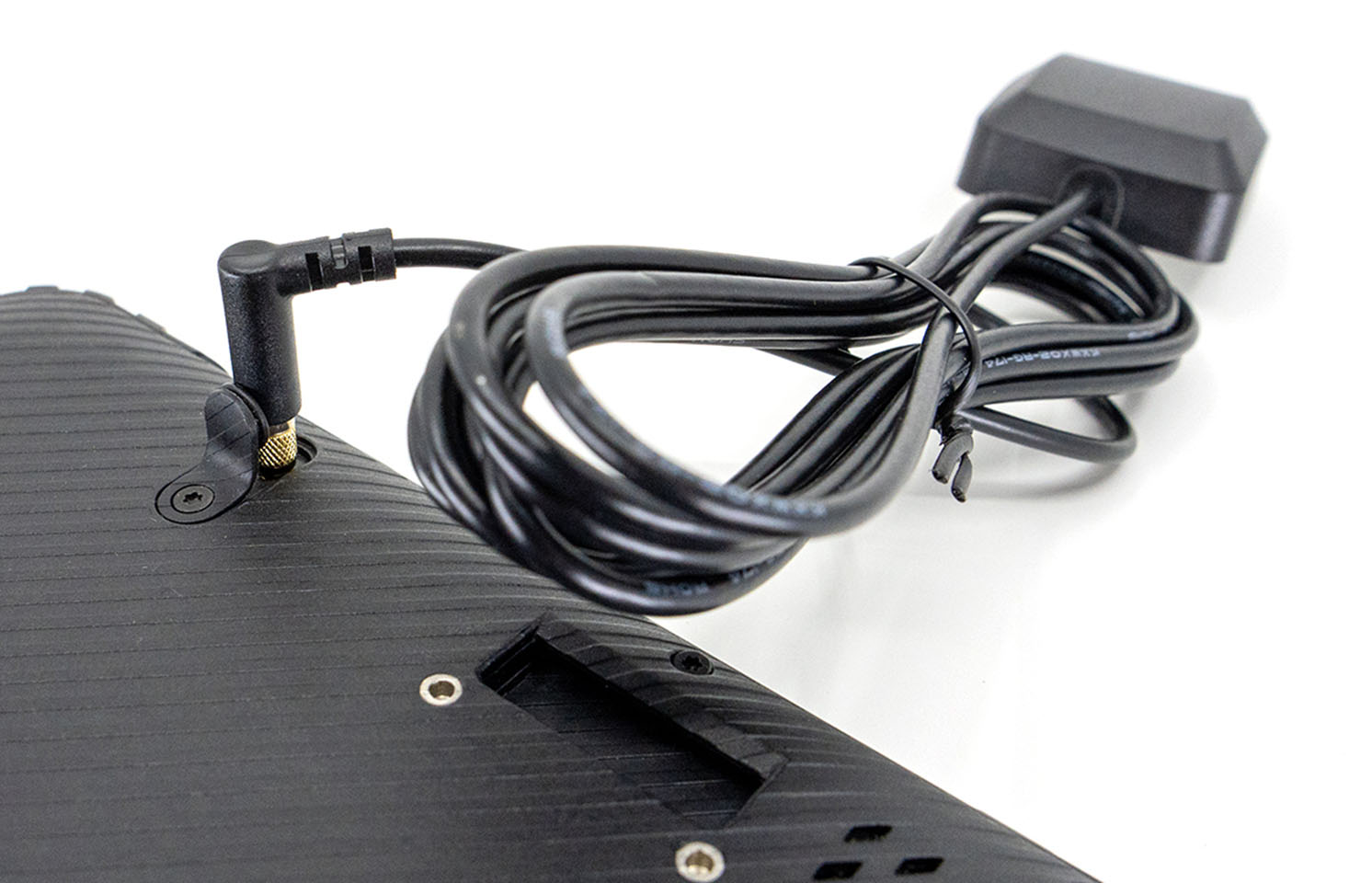

External Antenna

Specifically for overlanding setups, the T865X supports external GPS Antenna which, for cabin vehicles, can improve even further the GPS signal.

Install Any App

One of the big advantages of using an Android powered device with Play Store is that you can install any app, there are thousands of navigation apps to choose from!

It's in the details

We are riders, we use our products daily, we know what the user wants and we listen to our community. Our products shine in the details and in our original software development.

Remote assistance - We can help you sort issues by viewing your screen and control the device like if we were next to you.

OTA Updates - We update our Android OS firmware very frequently with improvements and security patches.

Always Evolving - Our apps are always being improved and getting new features, you always get updates first.

We Listen - All our products are developed with a lot of input from the community! Join us and talk with us.

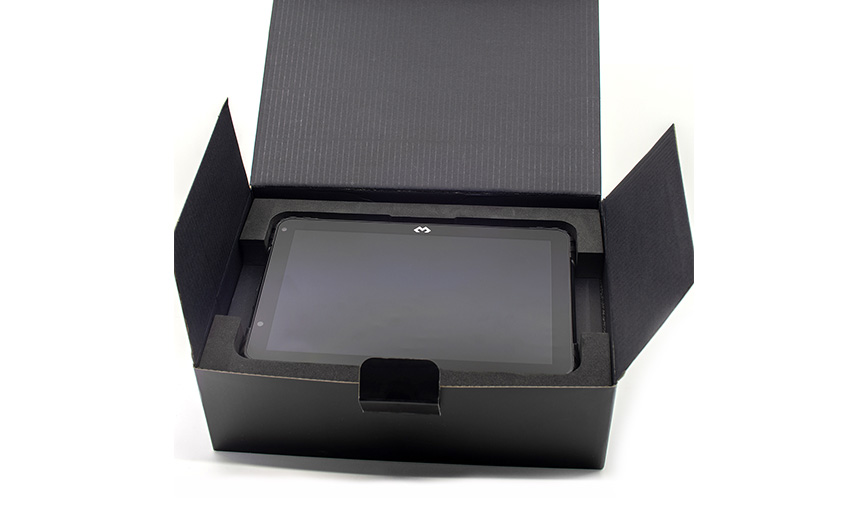

Product Gallery

Specs

Battery	8000mAh
CPU	Octa Core Processor ARM MT6769 6 Cores @ 1.80 GHz + 2 Cores @ 2.00 GHz GPU Mali-G52
Storage	128GB + Supports SD Card
OS Version	Android 14 with Play Store
Slots	2 x Nano-SIM 1x SD Card
Screen	8" Thick Glass High Clarity LCD 1300nit sustained brightness 1280 x 800 pixel
Ports	USB Type-C Headphone Jack M9 Screw Type Rear Connector for power and data Pins for power and data
Comms	Wifi 5GHz 4G LTE BT 5
Sensors	Accelerometer E-Compass Gyroscope
GPS Chip	Sub 1 meter Precision GNASS GLONASS GALILEO A-GPS
IP Rating	IP 67 Waterproof USB port Waterproof Headphone port Waterproof M9 Connector
Weight & Size	600g 207mm L x 137.5mm W x 15mm D
Camera & Sensor	Rear 16MP Autofocus Front Light & Proximity Sensor
Warranty	2 Year Warranty Lifetime Support with Remote Assistance
Buttons	Power Button Volume Buttons 3 User Configurable Buttons
Special	Expansion module for future DMD modules External GPS Antenna port

Where to Buy

You can buy any of our products directly from us, check our EU online shop - Thork Racing, or you can buy from any of the dozes of resellers that we have worldwide.

If you are outside EU we specifically advise to purchase only from our resellers!
