TPMS Sensors
Monitoring tyre pressures was never this easy. With DMD TPMS Caps you will be able to monitor not just pressure but also temperature, all from within your favorite navigation app while riding!
Plug & Play Kit
Bluetooth
Communication over Bluetooth, no pairing required, simply follow the TPMS DMD² sensor setup guide and its ready!
Battery Powered

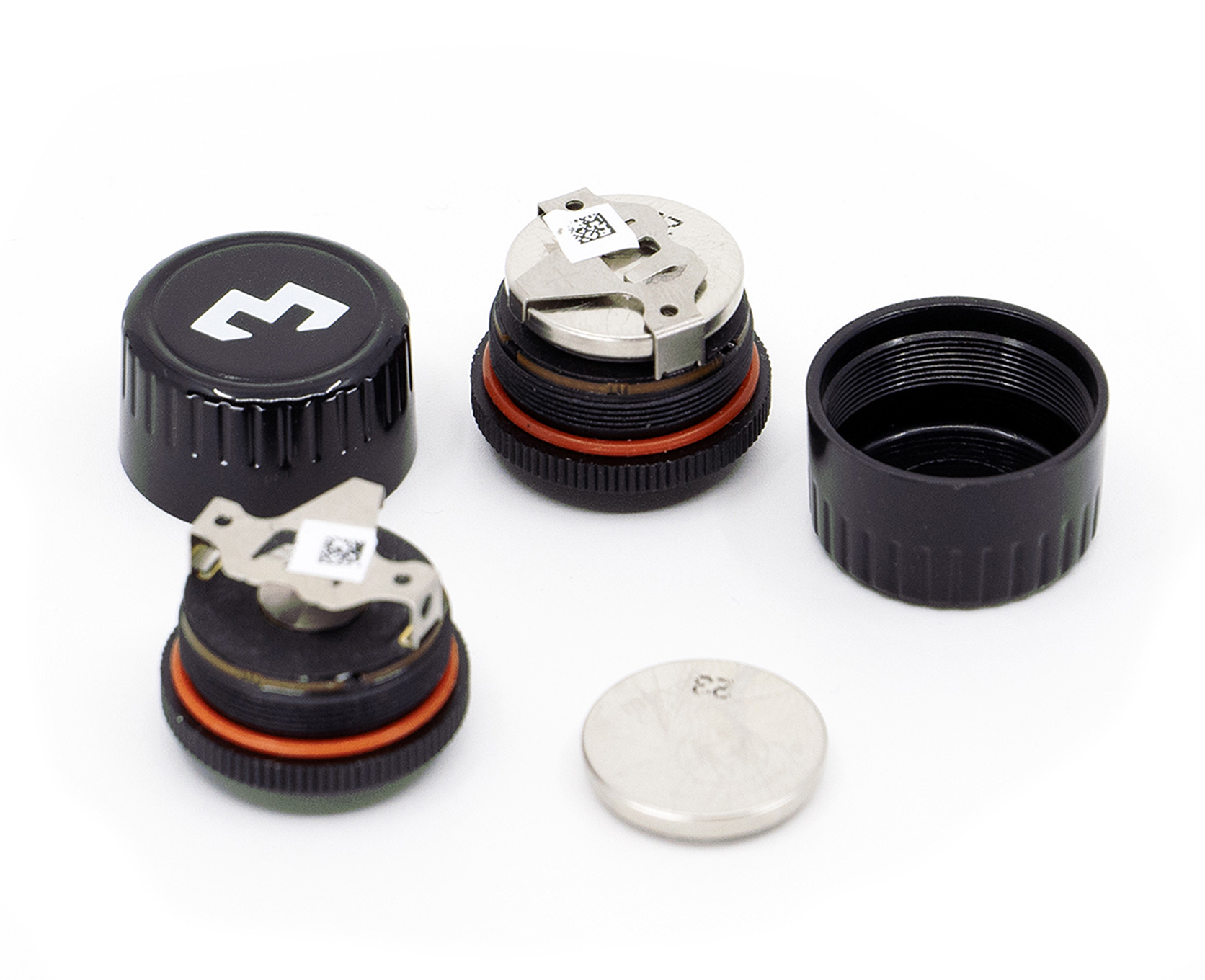

Long lasting battery life and easy battery replacement - CR1632. Monitor the battery level from within DMD².
Security Lock
With anti-theft nut and security wrench included in each kit. Keep your valve caps safe against theft!
Available Data
Monitor pressure, temperature and battery level. Setup alarms, low pressure thresholds and slow deflation detection.
How to Setup
Setup with DMD²
Open DMD², go to Global Settings > TPMS Sensor Settings, select 2 or 4 wheels and then tap on each wheel entry to search for a sensor, when the search starts plug a sensor in a wheel. Repeat for all sensors.
Set the Alarms
Setup a "Low Pressure Value" - can be set per wheel, after that you can enable the "Low Pressure Alarm" setting to get a notification if the pressure goes bellow the defined values.
Detect Leaks
Enable the "Detect Slow Air Leaks" to get notifications in case a leak is detected, a leak is a continuous and slow pressure reduction which DMD² will monitor and detect while you ride.

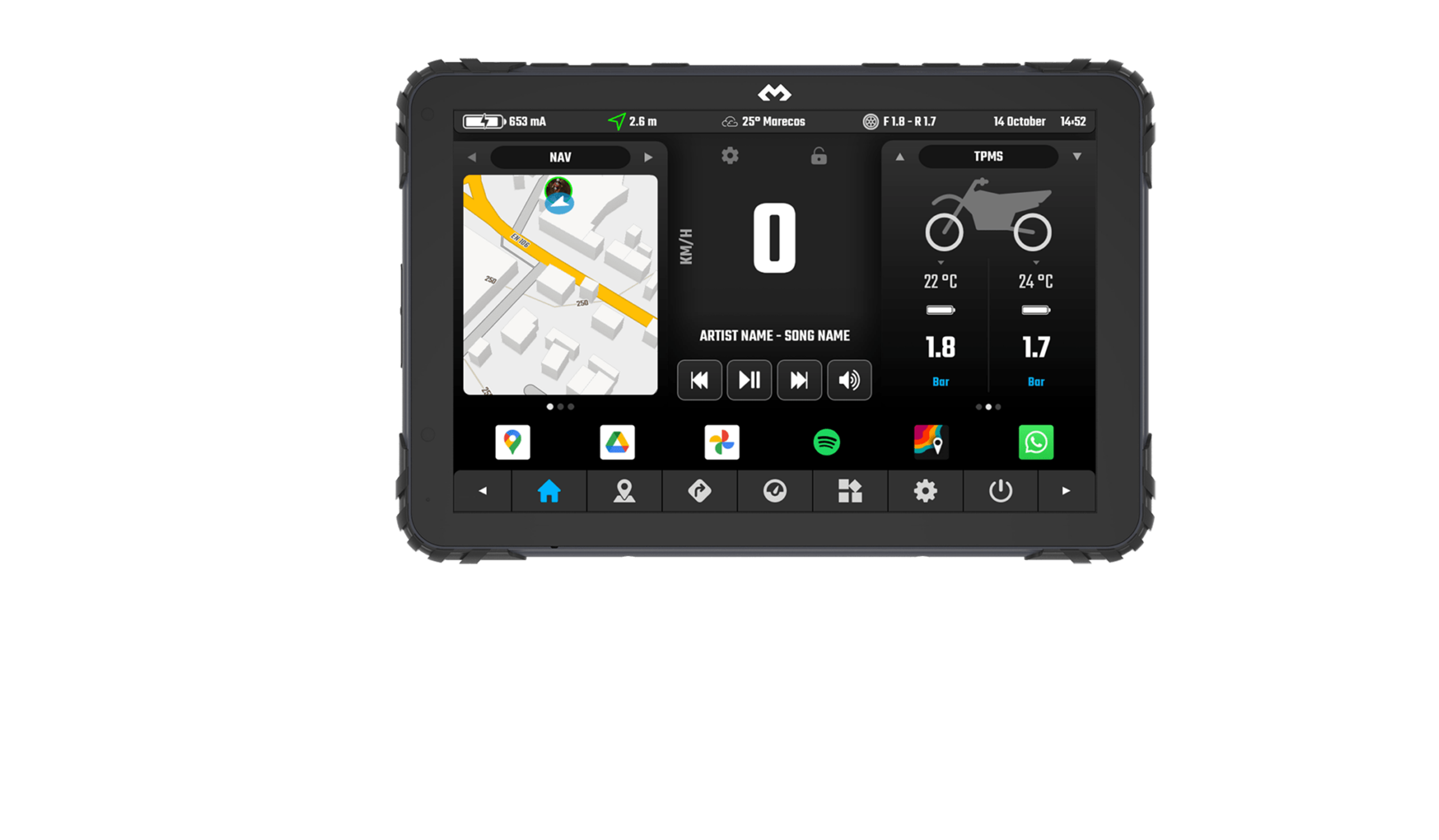

Setup UI
TPMS values can be displayed anywhere on the app, in the top status bar or in the home, map or roadbook views, either through widgets or indicator slots.

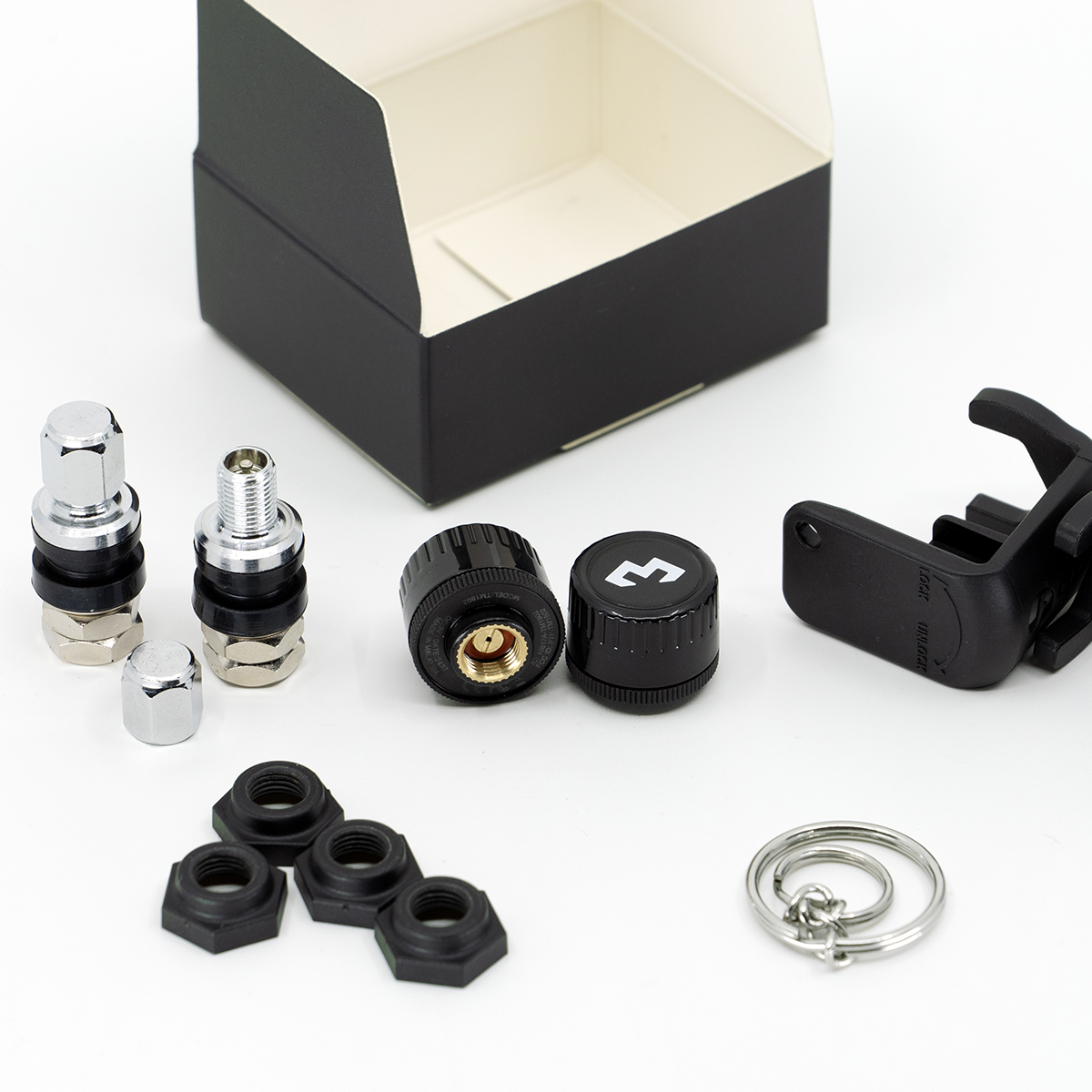

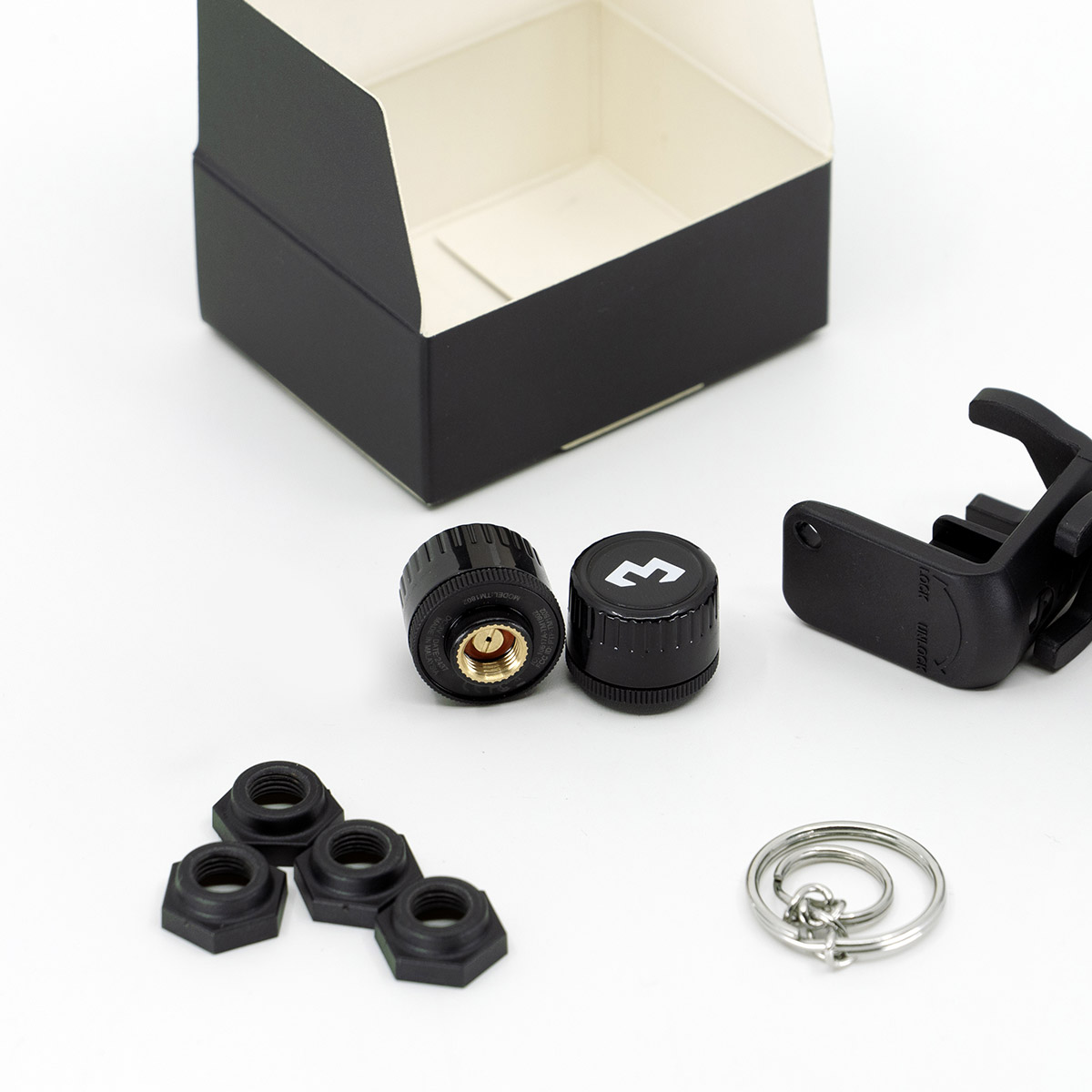

Kit Contents
Each kit includes two valve caps, for 4 wheel vehicles you need to buy two kits. DMD² supports both 2 wheels and 4 wheels setups.
Each kit contains:
2x BT Valve Cap Sensors
4x Security Lock Nuts
2x Security Wrench
2x Short Metal Valves for Tubeless Tyres
1x Keychain for Security Wrench
Specifications
Battery Type: CR1632
Operating Temperature: -20°C to +60°C
Weight: 7.6g (with battery)
Dimensions: 13.8mm x 20.2mm
Maximum Pressure: 800kPa (116psi)
Dust and Water Proof: IEC60529 - IP57
Mechanical & Environmental Reliability Testing Standards:
IEC 60068-2-2, IEC 60068-2-1, ISO 21750, IEC 60068-2-29, IEC 60068-2-5, IEC 60068-2-32, ISO 15184, ISO 2409, SAE J2657, SAEJ113/13
Certification:
- CE Certification
- FCC Certification
- IC Certification
- WEEE Directive 2012/19/EU
- REACH compliant
- RoHS Directive 2011/65/EU
Where to Buy
You can buy any of our products directly from us, check our EU online shop - Thork Racing, or you can buy from any of the dozes of resellers that we have worldwide.
If you are outside EU we specifically advise to purchase only from our resellers!
